Rack & Pinion VFD Drive Construction Material Hoist 60M/Min Speed
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction Material Hoist Rack and Pinion SC200BG MP-B11 SC200/200BG MP-B12 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Construction Material Hoist | Application | Material And Passenger Transportation At Construction Site |
|---|---|---|---|
| Material | Q355B Steel | Production | Processed By CNC Machines |
| Finishing | Sandblasting And Paint, Galvanised | Drive | VFD Drive |
| Highlight | 60M/Min Construction Material Hoist,VFD Drive Construction Material Hoist,Rack Pinion Building Material Hoist |
||
Product Description

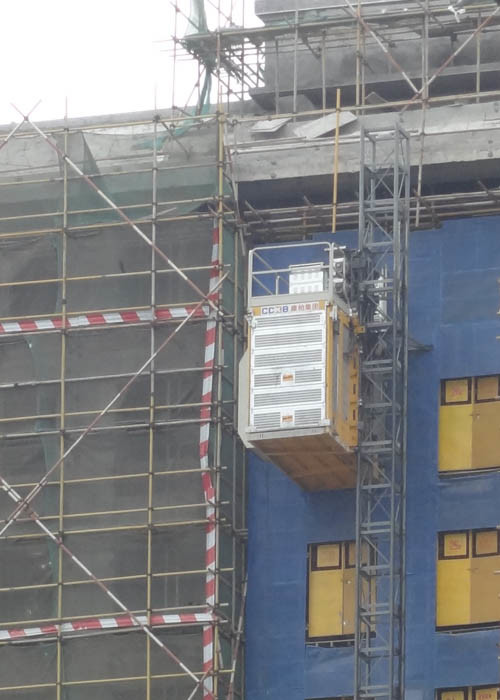

Rack & Pinion VFD Drive 60M/Min Speed Construction Material Hoist SC200/200BG
Construction Material Hoist Design
The modular and standardizing system makes this construction lift be flexible, efficient, safe, productive, low energy consumptive and ownership cost.
Construction Material Hoist Optional Configuration
Sliding Contact Line (Busbar) power supply system which made specially for rack and pinion lifts is available.

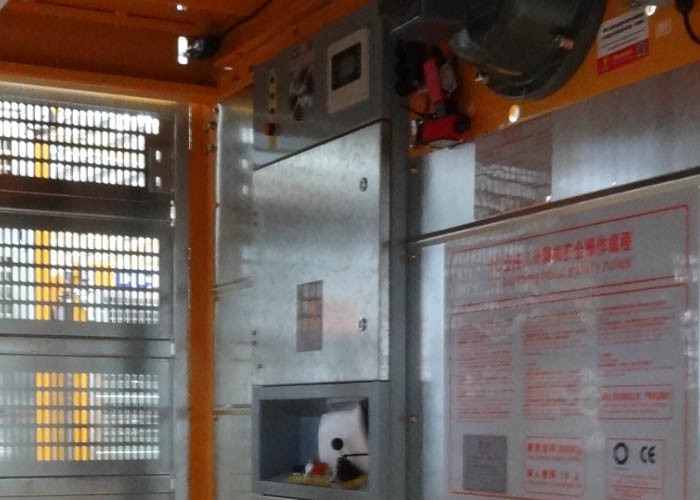

An intelligent elevator control system, Multi-function Control System, with functions of fault detect, display and alarm, and automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is availble.
Construction Material Hoist Technical Data
| Item & Article No. | SC200BG, KP-B11; SC200/200BG, KP-B12 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | Flap Type Exit Door as Ramp is available |
| Drive Unit | VFD (Variable Frequency Drive) |
| Engine power per cage | 3x15 KW |
| Gearbox | Helical Reducer |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
