SC200 SC200/200 Construction Rack And Pinion Hoist 450M Builders Lift With 'C' Door
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Passenger and material hoist SC200BD MP-B05 SC200/200BD MP-B06 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | In containers |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Man And Material Hoist | Application | Vertical Transportation Of Man And Materials At Construction Site, Bridges, Chimney, Plants, Etc. |
|---|---|---|---|
| Design | According To European Regulation And Modular | Material | Q355B Steel Plate |
| Max Height | 450 Meters | Color | Yellow |
| Highlight | SC200 Rack And Pinion Hoist,Rack And Pinion Hoist 450M,450M Builders Lift |
||
Product Description

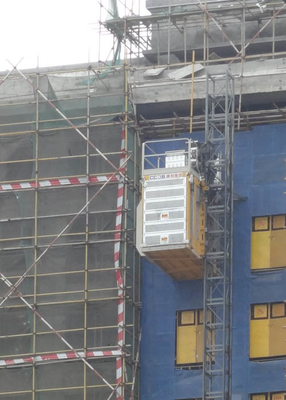

SC200, SC200/200 Construction Rack and Pinion Hoist 450M Builders Lift With 'C' Door
Rack and Pinion Hoist Introduction
This construction hoist has a wide range of applications on construction sites.
It is often used on large scale projects such as high rise buildings, towers, shopping mall and more.
It allows you to quickly and easily send materials and men from the ground floor to higher levels.
This efficiency is important, especially on large projects, a heavy duty cage is used to allow travel along the mast, rack and pinion system is what allows the mast to climb at various speeds and ultimately increases its efficiency.
Man And Material Lift Features and Advantages
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded, ensure no water leakage of cage roof.
* The additional big size third door at the long side of cage let the users to use fork trucks to load/unload heavy and big size materials.
* Easy access to electrical panels of elevator for maintenance.
* Full set of comprehensive safety measures, including certified safety braking system, including centrifugal brake, limit switches, Electromechanical interlocks, ensure of safety of this equipment.
* The material lift cage frame is enlarged and strengthened.
Man And Material Hoist Technical Data
| Item & Article No. | SC200BD, MP-B05; SC200/200BD, MP-B06 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors per Cage; Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x11 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Module | 8 |
