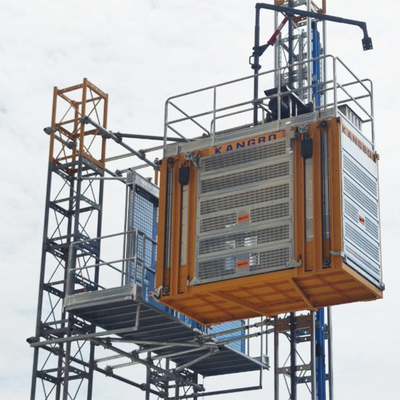

Construction Sit Hoist SC200 FIC-07 Intelligent Control Lift Rack And Pinion Hoist TUV Certificated
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200 FIC-07 |
| Minimum Order Quantity | 1 unit |
| Price | As per configurations |
| Delivery Time | 25 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | TUV Certificated Construction Sit Hoist,Intelligent Control Construction Sit Hoist |
||
|---|---|---|---|
Product Description
Construction Sit Hoist SC200 FIC-07 Intelligent Control Lift Rack And Pinion Hoist TUV Certificated
Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Multiple choice of construction lifts car doors or ramps is available.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient and ownership cost, making them the best choice for both construction and rental companies.
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Main structure frame are made of 16Mn and Q355 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.

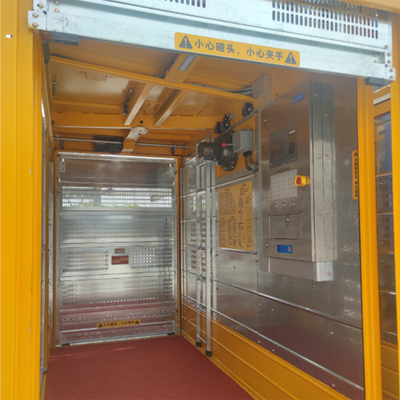

The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Operation
The hoist is equipped with Fully Intelligent System, with functions including floor selection, floor calling and automatic cage landing/stop, automatic open/close cage doors and floor doors, fault detect, display and alarm, personnel biologic recognition and permissions, etc.
Technical Data
| Item & Article No. | SC200 FIC-07 |
| Number of Cages | Single Cage |
| Payload Capacity | 2,000 KG |
| Lifting Speed | 0–46 meter/minute, full loaded |
| Max. Lifting Height | 250 m / 450 m * |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter |
| Cage Doors | Modularized Entrance Door and Discharge Door, and Third Door at the long side of cage |
| Engine Power | 2*15 KW |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*37 KW |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
