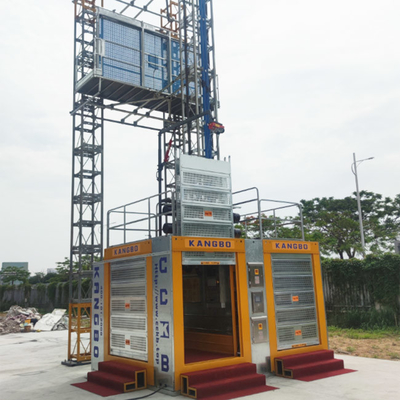

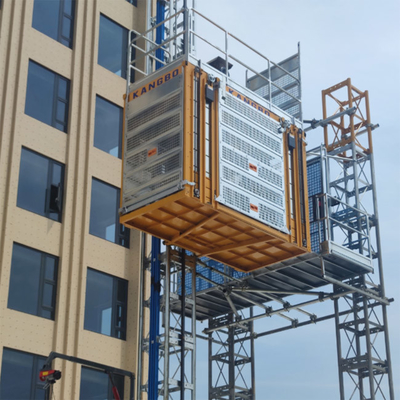

Construction Site Hoist SC200/200 FIC-08 Rack and Pinion Lift Fully Intelligent Control passenger and material hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200 FIC-07 |
| Minimum Order Quantity | 1 unit |
| Price | As per configurations |
| Delivery Time | 25 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | passenger Construction Site Hoist |
||
|---|---|---|---|
Product Description
Construction Site Hoist SC200/200 FIC-08 Rack and Pinion Lift Fully Intelligent Control passenger and material hoist
Standard Configuration
There is a electrical small crane available to facilitate the assembly of the construction elevator.
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Automatic Controls of the hoist, equipped with Fully Intelligent System, with functions including floor selection, floor calling and automatic cage landing/stop, automatic open/close cage doors and floor doors, fault detect, display and alarm, personnel biologic recognition and permissions, etc. .
Lighting inside construction elevator car is LED ceiling lamp
Technical Data
| Item & Article No. | SC200/200 FIC-08 |
| Number of Cages | 2 Cages |
| Payload Capacity | 2,000 KG each Cage |
| Lifting Speed | 0–46 meter/minute, fully loaded |
| Max. Lifting Height | 250 m / 450 m * |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | Modularized Entrance Door and Discharge Door, and Third Door at the long side of cage |
| Engine Power | 2*15 KW each Cage; 2*2*15 KW Totally. |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*37 KW each Cage; 2*37 KW Totally. |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
