Construction Hoist SC200/200 FIC-12 Fully Intelligent Control passenger and material Rack and Pinion Lift
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200 FIC-12 |
| Minimum Order Quantity | 1 unit |
| Price | As per configurations |
| Delivery Time | 25 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | 380V~480V 50/60Hz, Three Phase | Loder Weight | 2000kg |
|---|---|---|---|
| Motor Control | VFC (Variable Frequency Control) | Mast Finish | Galvanised |
| Surface Treatment | Sand Blasting And Paint Or Galvanized | Voltage | 380V |
| Safety Features | Emergency Stop Button, Overload Protection | Description | SC200BZ Construction Site Hoist |
| Standard | EU Regulations | Mast Type | Square Column With Bolted Rack |
| Motor | Frequency Control (FC) | Lifting Speed | 0-60m/min |
| Cage Size | Customized | Applying Location | Construction Site, Plants, Etc. |
| Design | According To European Regulation | ||
| Highlight | Rack and Pinion Construction Hoist,SC200/200 Construction Hoist,Material Construction Hoist |
||
Product Description

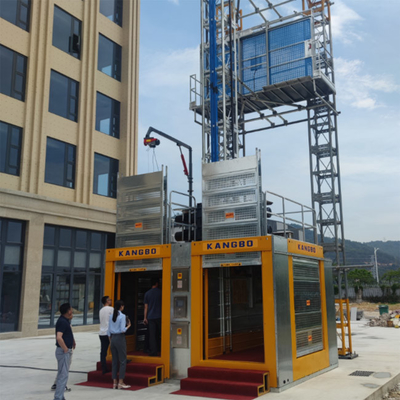

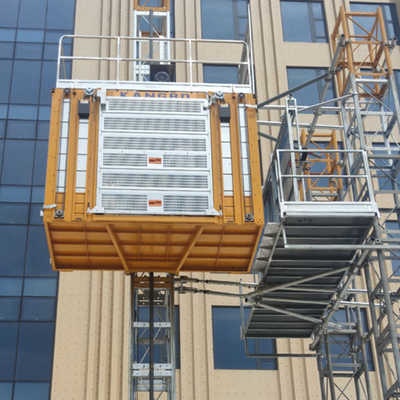

Construction Hoist SC200/200 FIC-12 Fully Intelligent Control passenger and material Rack and Pinion Lift
Features
* Apply high efficiency and energy-saving gear reducer
*Apply non-eccentric rollers. No need to adjust rollers after installation. That means faster installs for any Exterior
Restoration or Construction project and no mistakes caused by installation.
*Integrated cage roof. Cage roof is made by a full plate of tread plate cut by Laser and welded by robots one time to
complete, with high strength and no leakage.
* Unique flap door for loading/unloading ramp
* Additional 'C' door at cage side for convenient loading/unloading.
* Interlocked roof hatch
* Drop test facility with remote pendant
* Be equipped with with Fully Intelligent System, with functions including floor selection, floor calling and automatic cage landing/stop, automatic open/close cage doors and floor doors, fault detect, display and alarm, personnel biologic recognition and permissions, etc.
* Easy access to electrical panels for maintenance
* centrifugal braking safety device
* Heavy duty galvanized mast sections
Technical Data
| Item & Article No. | SC200/200 FIC-12 |
| Number of Cages | 2 Cages |
| Payload Capacity | 2,000 KG each Cage |
| Lifting Speed | 0–60 meter/minute, fully loaded |
| Max. Lifting Height | 250 m / 450 m * |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | Modularized Entrance Door and Discharge Door, and Third Door at the long side of cage |
| Engine Power | 3*15 KW each Cage; 2*3*15 KW Totally. |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55 KW each Cage; 2*55 KW Totally. |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
