Fully Intelligent Control Construction Hoist SC200 FIC-07 Rack And Pinion Lift With Automatic Floor Doors
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200 FIC-07 |
| Minimum Order Quantity | 1 unit |
| Price | As per configurations |
| Delivery Time | 25 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cage Size | 3.2m X 1.5m X 2.5m | Hoisting Speed | 46m/min |
|---|---|---|---|
| Max Load Capacity | 2000kg | Specification | SC200 |
| Processing | Processed By CNC Machines, Robots | Motor Power | 3x15KW Each Cage |
| Design | Modular Design | Max Install Hegith | 450m |
| Finishing | Sand Blasting And Paint/galvanised | Motor Control | FC Control |
| Operation | Fully Intelligent Control System | Lifting Speed | 0-46mtrs/minute |
| Highlight | Fully Intelligent Control Construction Hoist,Automatic Floor Doors Construction Hoist,Rack And Pinion Construction Hoist |
||
Product Description

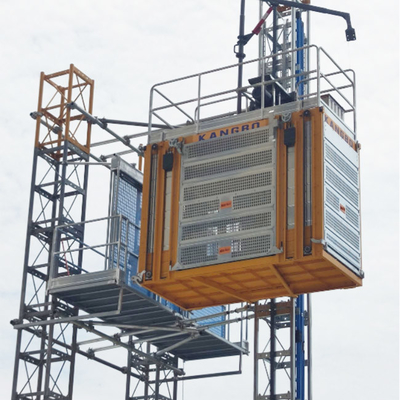

Fully Intelligent Control Construction Hoist SC200 FIC-07 Rack And Pinion Lift With Automatic Floor Doors
Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Multiple choice of construction lifts car doors or ramps is available.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient and ownership cost, making them the best choice for both construction and rental companies.
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q355B high strength steel.
Main structure frame are made of 16Mn and Q355b high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.

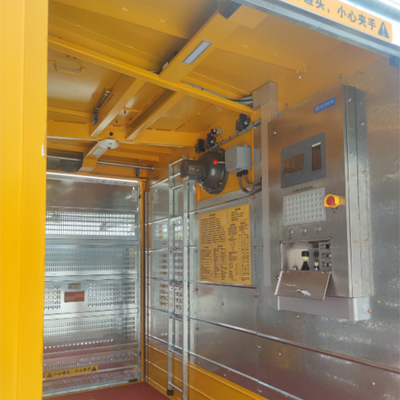

The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Confugaration
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Equipped with Fully Intelligent System, with functions including floor selection, floor calling and automatic cage landing/stop, automatic open/close cage doors and floor doors, fault detect, display and alarm, personnel biologic recognition and permissions, etc.
Technical data
| Item & Article No. | SC200 FIC-07 |
| Number of Cages | Single Cage |
| Payload Capacity | 2,000 KG |
| Lifting Speed | 0–46 meter/minute, full loaded |
| Max. Lifting Height | 250 m / 450 m * |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter |
| Cage Doors | Modularized Entrance Door and Discharge Door, and Third Door at the long side of cage |
| Engine Power | 2*15 KW |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*37 KW |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
