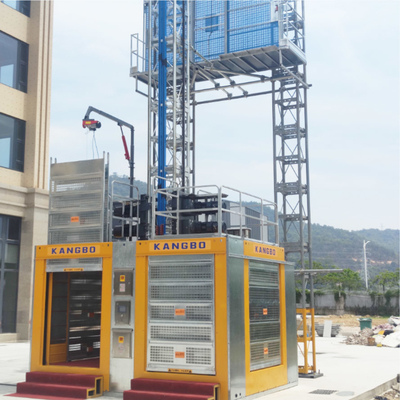

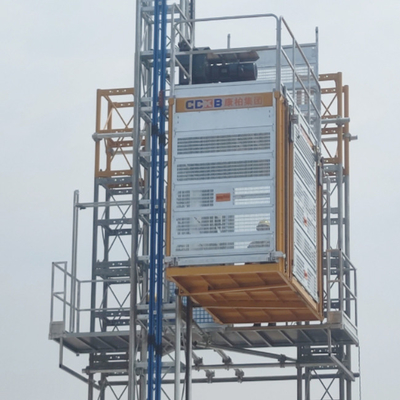

SC200/200 Construction Hoist FIC-12 Fully Intelligent Control Passenger And Material Rack And Pinion Lift
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200 FIC-08 |
| Minimum Order Quantity | 1 unit |
| Price | As per configurations |
| Delivery Time | 25 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Passenger And Material Construction Hoist,Passenger Construction Hoist |
||
|---|---|---|---|
Product Description
SC200/200 Construction Hoist FIC-12 Fully Intelligent Control Passenger And Material Rack And Pinion Lift
Features and Advantages
* Equipped with Fully Intelligent System, with functions including floor selection, floor calling and automatic cage landing/stop, automatic open/close cage doors and floor doors, fault detect, display and alarm, personnel biologic recognition and permissions, etc.
* Racks and Pinions are 8 Modulus, the most popular specification which is convenient for users to maintain and replace.
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient and ownership cost.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* The additional big size third door at the cage side let the users to use fork trucks to load/unload extremely heavy and big size materials.
* Easy access to electrical panels of elevator for maintenance.
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
* Frequency control motors make the construction hoists starting and stopping very smoothly, with low starting current and much less wear and tear.
* Built-in electrical cabinet inside cage let the maintenance personnels safe and comfortable to do their jobs.
* Modular design entry door and exit door, including vertical sliding type and flap type, make the KANGBO passenger and material hoists be flexible and applicable to various circumstance.
Technical Data
| Item & Article No. | SC200/200BZ, MP-B08 |
| Number of Cages | 2 Cages |
| Payload Capacity | 2,000 KG each Cage |
| Lifting Speed | 0–46 meter/minute, fully loaded |
| Max. Lifting Height | 250 m / 450 m * |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | Modularized Entrance Door and Discharge Door, and Third Door at the long side of cage |
| Engine Power | 2*15 KW each Cage; 2*2*15 KW Totally. |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*37 KW each Cage; 2*37 KW Totally. |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
