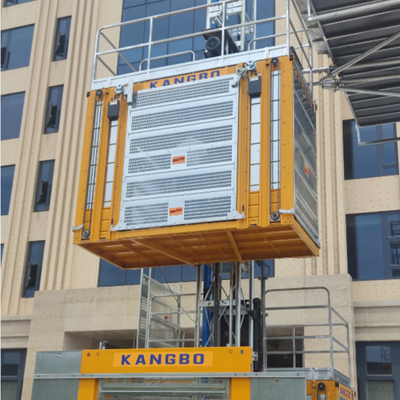

Fully Intelligent Control SC200 FIC-07 Construction Site Rack And Pinion Lift With Automatic Floor Doors
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200 FIC-07 |
| Minimum Order Quantity | 1 unit |
| Price | As per configurations |
| Delivery Time | 25 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cage Size | 3.2(L)*1.5(W)*2.35(H) Meters | Cage | Single |
|---|---|---|---|
| Production | Processed By CNC Machines, Robots | Capacity | 2000kg |
| Elevator Door | Vertical Sliding Door | Lift Mechanism | Rack And Pinion |
| Applying Location | Construction Site, Plants, Etc. | Color | Yellow |
| Hoist Speed | 0-46m/min | Control System | Fully Intelligent System |
| Operation Mode | Automatic | Finish | Sand Blasting And Paint, Galvanised |
| Mast Finish | Galvanised | Power Supply | 380V/50Hz |
| Production Standard | EN 12159:2012, EN 60204-1:2006/A1:2009. | ||
| Highlight | Construction Site Rack And Pinion Lift,SC200 FIC-07 Construction Site Hoist,Fully Intelligent Control Construction Site Hoist |
||
Product Description

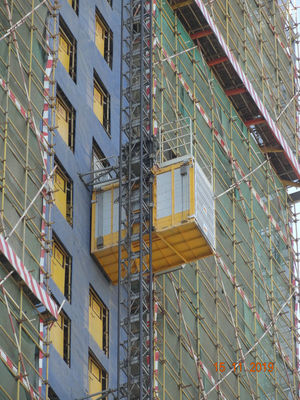

Fully Intelligent Control SC200 FIC-07 Construction site Rack And Pinion Lift With Automatic Floor Doors
Features and Advantages
* Racks and Pinions are 8 Modulus, the most popular specification which is convenient for users to maintain and replace.
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient and ownership cost.
* The passenger and material elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* The additional big size third door at the cage side let the users to use fork trucks to load/unload extremely heavy and big size materials.
* Easy access to electrical panels of elevator for maintenance.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
* Built-in electrical cabinet inside cage let the maintenance personnels safe and comfortable to do their jobs.
* Equipped with Fully Intelligent System, with functions including floor selection, floor calling and automatic cage landing/stop, automatic open/close cage doors and floor doors, fault detect, display and alarm, personnel biologic recognition and permissions, etc.
Technical Data
| Item & Article No. | SC200 FIC-07 |
| Number of Cages | Single Cage |
| Payload Capacity | 2,000 KG |
| Lifting Speed | 0–46 meter/minute, full loaded |
| Max. Lifting Height | 250 m / 450 m * |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter |
| Cage Doors | Modularized Entrance Door and Discharge Door, and Third Door at the long side of cage |
| Engine Power | 2*15 KW |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*37 KW |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
