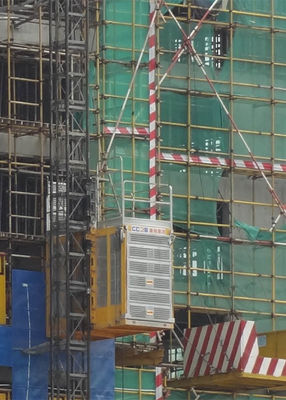

Reliable Durable Elevator For Construction , SC200BZ Rack And Pinion Lifter
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200BZ, KP-B07,B08 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Construction Site Elevator Rack And Pinion Lifter SC200BZ KP-B07 | Material | Q345B Cool Roll Steel Plate |
|---|---|---|---|
| Processing Procedure | Cut By Laser, Processed By CNC Machines In Tool Fixtures. | Finishing | Painted And Galvanised |
| Color | Yellow | ||
| Highlight | temporary passenger elevators,rack and pinion lifter |
||
Product Description
Construction Site Elevator rack and pinion lifter SC200BZ KP-B07
Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Features and Advantages
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
| Technical Data | KP-B07, B08 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | Frequency Control |
| Engine Power | 2x15 kw |
| Gearbox | Helical Gearbox of KANGBO Make |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |
