Civil Office Building 3 Doors 60m / Min Construction Site Elevator Lift
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction Site Rack and Pinion Elevator SC200BG MP-B11 SC200/200BG MP-B12 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Construction Site Elevator | Application | Civil / Office Building |
|---|---|---|---|
| Design | Modular And According To European Regulation | Production | Processed By CNC Machines, Laser, Robots In Assembly Line |
| Doors | 3 Doors | Drive Mode | Cage Top |
| Motor Control | Variable Frequency Drive (VFD) | Finishing | Sand Blasting, Painted, Galvanised |
| Highlight | 60m / Min Site Elevator,60m / Min Construction Elevator |
||
Product Description

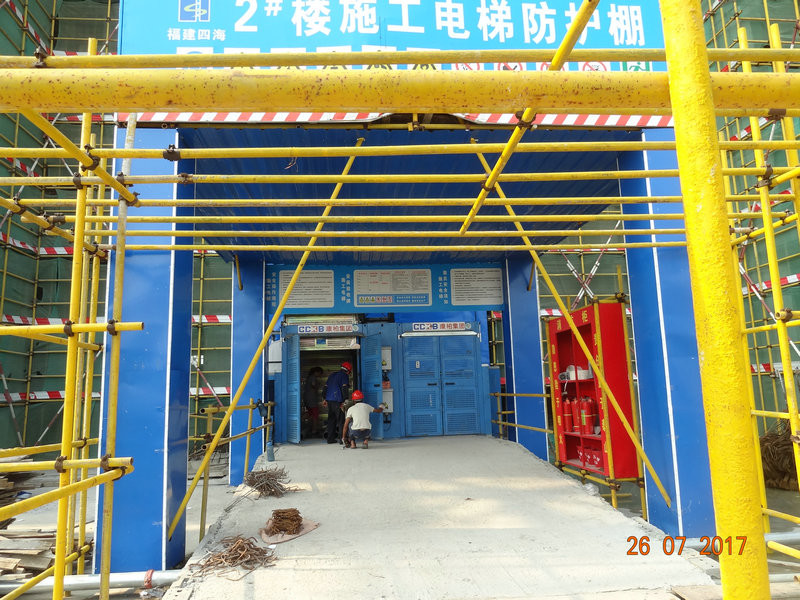

Civil / Office Building 3 Doors Construction Site Elevator
Construction Site Elevator Application
The construction hoist is widely used in the field of industrial and civil construction, bridge construction, underground construction, large chimney construction, ship industry, etc. Being suitable for the vertical transport of materials and people, they can also be used as permanent / semi-permanent electric elevators in various environments like warehouses and high towers.
Construction Site Elevator Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The passenger and material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and personnel elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Motor control is VFC (Variable Frequency Control) and adopt Schneider invertors, with reliable quality and after sale service in all over the world.
Construction Site Elevator Technical Data
| Item & Article No. | SC200BG, MP-B11; SC200/200BZ, MP-B12 Construction Site Elevator |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x15 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
