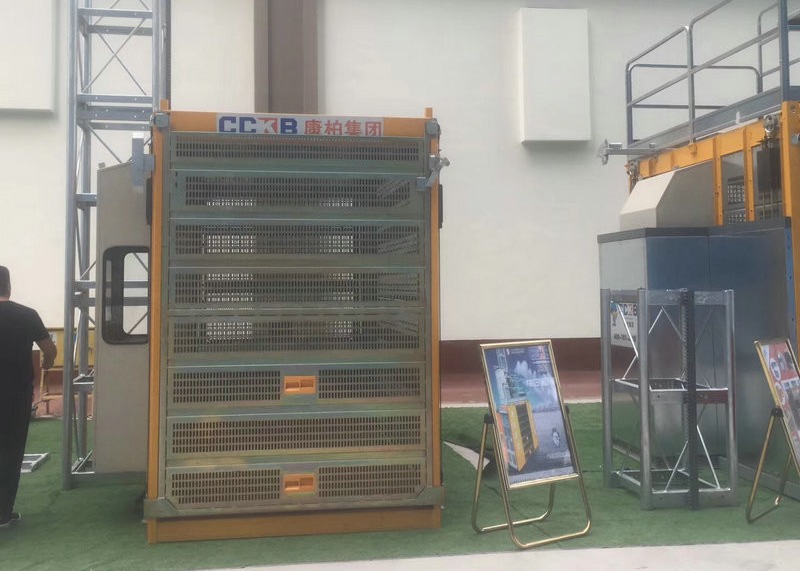

Low Noise Rack Pinion Lift 450M Construction Site Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction Site Elevator rack and pinion type SC200BD MP-B05 SC200/200BD MP-B06 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Construction Site Elevator | Feature | Low Noise |
|---|---|---|---|
| Design | Modular Design | Material | Q345B Steel |
| Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009 | Lifting Height | 450M |
| Highlight | rack pinion lifting elevator,450m Construction Elevator,Low Noise Rack Pinion Lift |
||
Product Description
Low Noise Max Lifting Height 450M Construction Site Elevator
Construction Site Elevator Introduction
***. Direct start-up and stop
***. Simplicity and cost saving
***. Cage size due to customization
***. High quality
***. No counterweight
***. Low wear-out.
***. The main electric elements adopt Schneider Brand .
Construction Site Elevator Configuration
There is a electrical small crane available to facilitate the assembly of the construction elevator.
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.
Construction Site Elevator Technical Data
| Item & Article No. | SC200BD, MP-B05; SC200/200BD, MP-B06 Construction Site Elevator |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x11 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
