SC200/200 Humanized Cage Comfortable Rack Pinion Construction Site Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200BZ, SC200/200BZ, KP-B07,B08 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Construction Site Elevator | Material | Q345B Cool Roll Steel Plate |
|---|---|---|---|
| Processing Procedure | Cut By Laser, Processed By CNC Machines In Tool Fixtures. | Finishing | Sand Blasting, Painted And Galvanised |
| Design | Humanized Cage Design | Feature | Comfortable, Reliable |
| Highlight | rack pinion lift,Humanized Construction Site Elevator |
||
Product Description

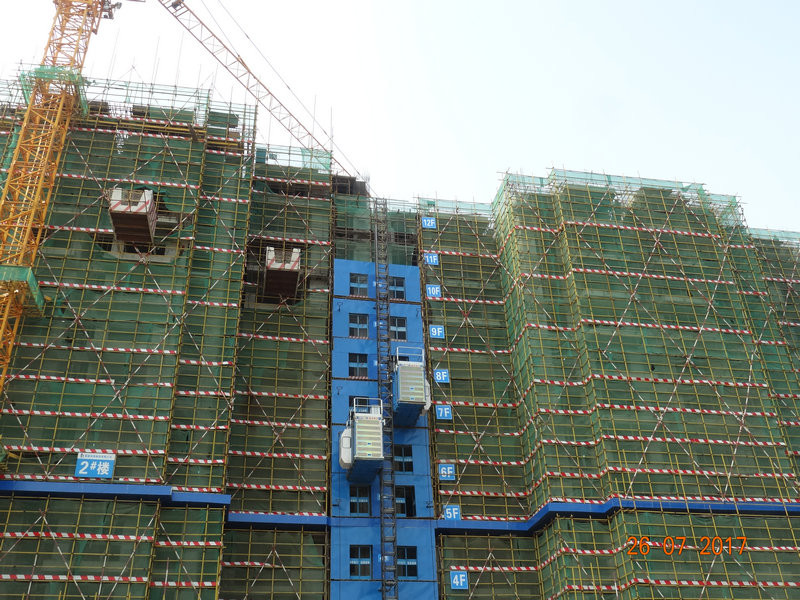

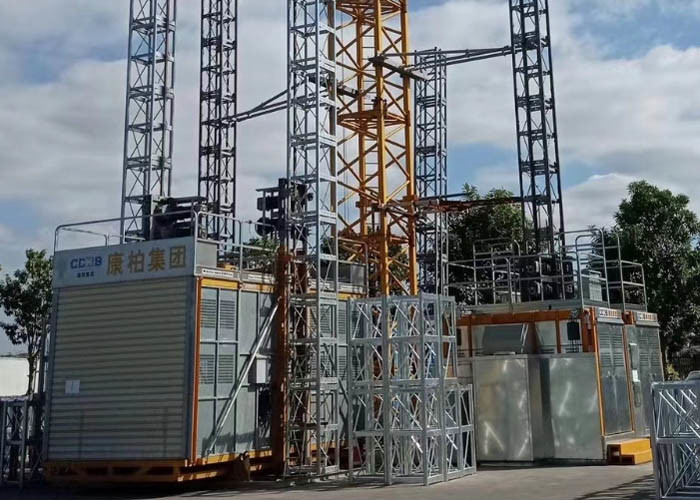

Humanized Cage Design Comfortable Construction Site Elevator
Construction Site Elevator Introduction
The overload capacity of Hollisworth building hoist can reach 2000kgs; the lifting speed can reach 46m/min, and the max. Erecting height can be as high as 450m. The hoists are widely used in construction site,power projects, metallurgical, mining, oil and chemical industries. Hollisworth also can design and produce the special kinds of lifting equipments upon the clients; requirements or special condition on the working site. Hollisworth can produce the following kinds of building hoist:
1.Normal building hoist
2.High-speed frequency conversion hoist
3.Multifunctional building hoist
4.Curved & Inclined hoist
5.Double pillar Heavy duty hoist
6.Mini Hoist
Construction Site Elevator Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Construction Site Elevator Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Features and Advantages
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
Construction Site Elevator parameters
| Technical Data | KP-B07, B08 Construction Site Elevator |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | Frequency Control |
| Engine Power | 2x15 kw |
| Gearbox | Helical Gearbox of KANGBO Make |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |
