Flexible Modular 2000 KG Rack And Pinion Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction Site Rack and Pinion Elevator SC200BG MP-B11 SC200/200BG MP-B12 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Rack And Pinion Elevator | Application | Building Site, Plants |
|---|---|---|---|
| Feature | Flexible | Production | Processed By CNC Machines, Laser, Robots In Assembly Line |
| Material | Q345B Steel | Design | Modular Design |
| Highlight | 2000kg modular elevator,rack & pinion Elevator,Flexible Modular Rack Pinion Elevator |
||
Product Description

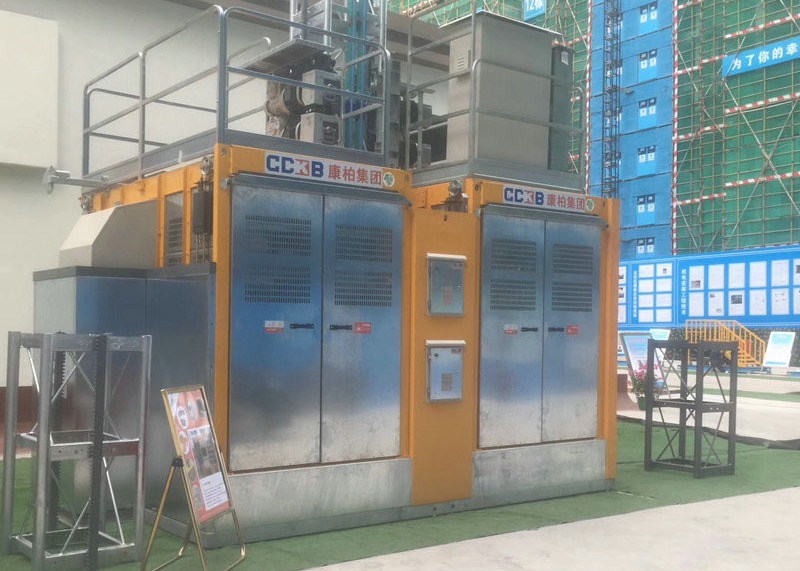

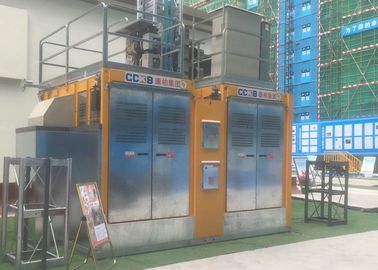

Flexible Modular Design 2,000 KG Rack And Pinion Elevator
Rack And Pinion Elevator Introduction
Rack And Pinion Elevator , Double cage, Fixed-Frequency Drive, and the motor on the top of cage, load capacity of one cage 2000KG.
Rack And Pinion Elevator,the motor on the top of cage, load capacity of one cage 2000KG .
New type more convenient SC series construction hoist with rack and mast section for building/tower/bridge/chimney is rack and pinion EL.Lift, used on construction site for transportation of personnel and materials, hoist function degree is A8.
It is installed and dismounted conveniently and can grow as high as the buildings grow in height.
SC hoist has reliable electrical and mechanical safety device. It is efficient and safety vertical transporting equipment.
Rack And Pinion Elevator Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
Rack And Pinion Elevator Technical Data
| Item & Article No. | SC200BG, MP-B11; SC200/200BZ, MP-B12 Rack And Pinion Elevator |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x15 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
