Bridge Building VFD Motor Control 400M Construction Site Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BD) |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiate |
| Packaging Details | Suitable for export |
| Delivery Time | 30 day |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q345B Cool Roll Steel Plate | Application | Bridge Building |
|---|---|---|---|
| Inverter Brand | Schneider | Gearbox | Helical Gearbox |
| Finishing | Painted And Galvanised | Keywords | Construction Site Elevator |
| Highlight | VFD Construction Site Elevator,400M Construction Elevator,VFD Bridge Building Site Elevator |
||
Product Description

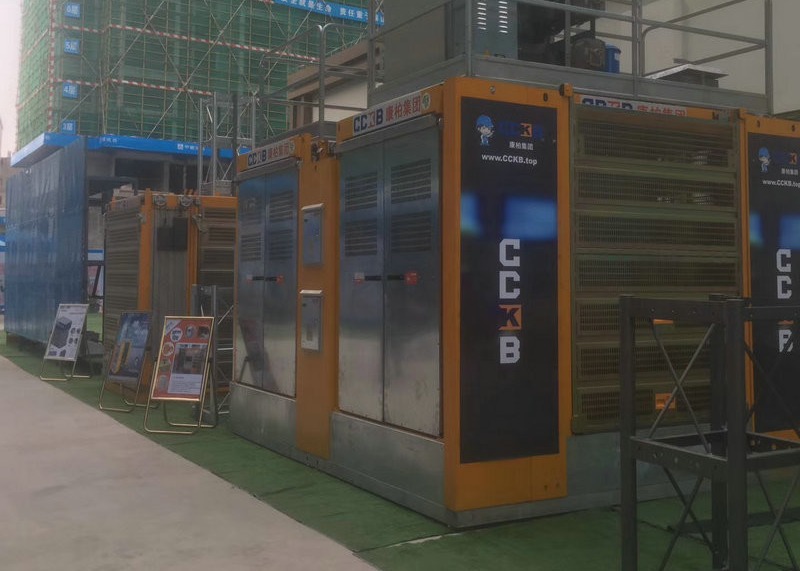

Bridge Building VFD Motor Control Construction Site Elevator
Construction Site Elevator Description
The construction hoist is provided with reliable safety interlock devices, safety switch, breakage protection switch, upper and lower limits and limit switches etc. Progressive dropping safety device and safety protection hook are provided. The safety design and configuration fully comply to national standards.
Adopting advanced technology both at home and abroad, SC series construction elevator is novel in design, reasonable in structure, simple in operation, convenient in assembly and disassembly, safe an reliable in working.
The construction hoist incorporates famous brand electric components and main parts in transmission mechanism. The steel structure is made of high-quality steel materials and welded with CO2 gas shield welding. Surface paint is made with imported raw materials in brilliant, long lasting colors.
Construction Site Elevator Features
Truly modular design and standardized production.
Variable Frequency Control motors make the elevator start/stop smoothly.
Construction Site Elevator Production
Elevator parts are made of Q346 cool roll steel plate, processed by Laser and CNC machines in tool fixtures.
Full set of safety facilities, including centrifugal brake, limit switches, emergency limit switches, electromechanical interlock.
Construction Site Elevator Process and Production
Main parts are made of Q345 steel and processed by CNC machines and robots.
Strengthened cage frames of which steel channel are enlarged and thickened.
Construction Site Elevator Parameters
| Technical Data | KP-B05, KP-B06 Construction Site Elevator |
| Max. Lifting Height | 400 m |
| Payload | 2,000 kg |
| Lifting Speed | 0–36 m/min. |
| Cage Size (internal) | 3.2(L)x1.5(W)*2.35(H) meter |
| Motor Control | VFD control |
| Motor Power | 2x11 kw |
| Gearbox | KANGBO make Helical reducer |
| Safety Device Type | centrifugal brake |
| Type of Mast | square column 650*650 mm with bolted rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
