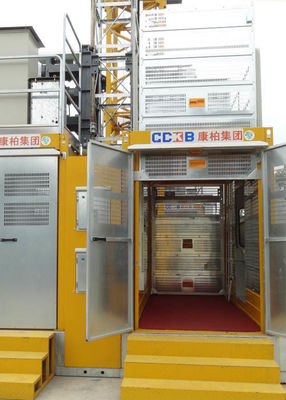

Vertical Transportation Construction Man Lift Payload Capacity 3000Kg Lifting Speed 0–60 M/Min
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction site elevator rack pinion SC300BG KP-B15 SC300-300BG KP-B16 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Man Lift | Application | Vertical Transportation At Construction Site |
|---|---|---|---|
| Material | Q345B Steel | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Finishing | Sandblasting And Painted, Galvanised | Color | Yellow |
| Highlight | temporary passenger elevators,construction man lift |
||
Product Description
Construction site elevator rack pinion lift SC300BG KP-B15 SC300-300BG KP-B16
Configuration
There is a electrical small crane available to facilitate the assembly of columns and doors on the floors.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp.
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.
Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Technical Data
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 |
| Payload capacity | 3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor control | FC control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | Square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
