Direct Start Up And Stop 46 M / Min Construction Hoist Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction Hoist Elevator SC200BZ MP-B07 SC200/200BZ MP-B08 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Construction Hoist Elevator | Application | Veritcal Transportation Of Man And Material At Construction Site |
|---|---|---|---|
| Design | According To EU Regulation | Material | Steel |
| Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009. | Speed | 0–46 M/Min |
| Highlight | 46m / min Construction Elevator,30kw Construction Hoist Elevator |
||
Product Description
Direct Start-Up And Stop 0–46 M/Min. Construction Hoist Elevator
Construction Hoist Elevator Introduction

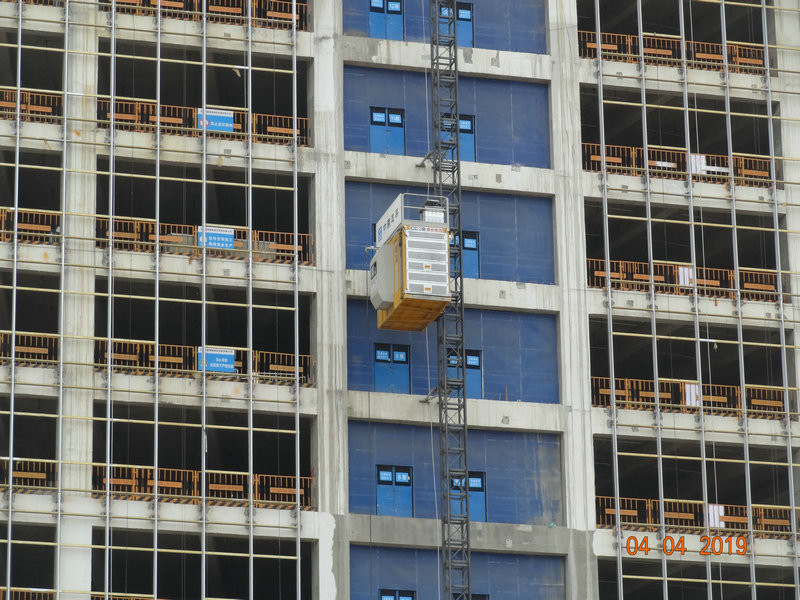

Our construction elevator (lift, hoist) is also called outdoor construction elevator, which is driven by pinions & racks devices and with safe & comfortable cages. It can lift both construction materials and passengers. It bases on its mast fixed in the ground and attached to the wall, which ensure its safety
Construction Hoist Elevator Optional Configuration
Rack and pinion elevator cage flap door as loading/unloading ramp.
Sliding Contact Line (Integrated Conductive Rail or Busbar) specially for rack and pinion lifts.
An intelligent elevator control system, Multi-function Control System, with functions of fault detect, display and alarm, and automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is availble.
Construction Hoist Elevator Technical Data
| Item & Article No. | SC200BZ, MP-B07; SC200/200BZ, MP-B08 Construction Hoist Elevator |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x15 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
