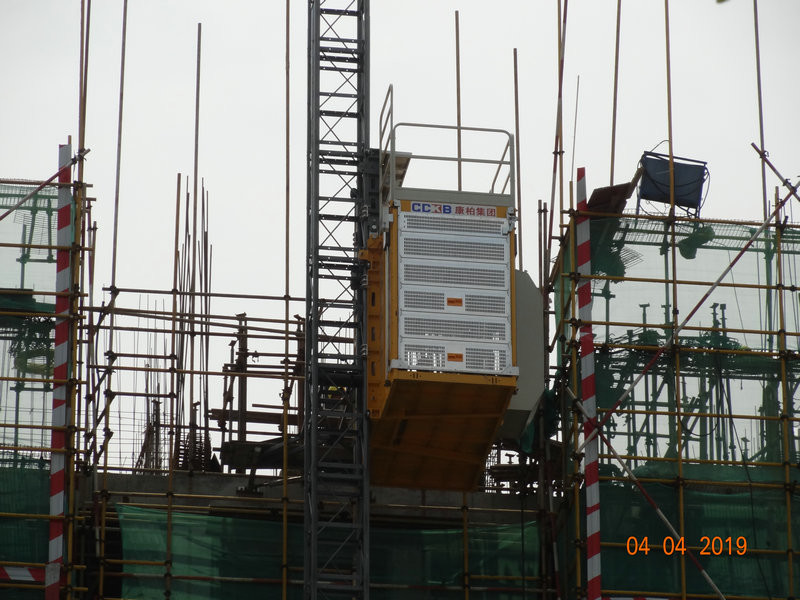

Building 2*11Kw Buck Construction Hoist Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BD) |
| Minimum Order Quantity | 1 set |
| Price | negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Buck Hoist Elevator | Application | Building Construction |
|---|---|---|---|
| Material | Q345B Cold Roll Steel Plate | Production | Standardized Production |
| Finishing | Painted And Galvanised | Color | Yellow Or Customized |
| Highlight | 22kw Construction Hoist Elevator,22kw building Hoist Elevator |
||
Product Description
Building Construction 2*11Kw Buck Hoist Elevator
There are two accesses for floor selecting and leveling:
1.Manual control, which is dirct control by the operator.
2. computer automatic positing system,which can easliy realize floor-selecting and leveling without manual stop or point car leveling,reduce the difficulty of manipulation,convenient and precise.SS100/100 adopts wall-attaching device instead of wind rope along with self-erection and dismantling init ,easy to handling and transportation.
Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
Standard Configuration
There is a small crane for conenient assembly of the construction lift.
Available in single or twin hoist cage configuration.
Frequency control Motors, makes the construction hoists starting and stopping very smoothly, with low starting current and much less wear and tear.
Manual or Automatic Controls of the hoist is optional.
Buck Hoist Elevator Parameters
| Technical Data | KP-B05, KP-B06 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–36 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x11 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
