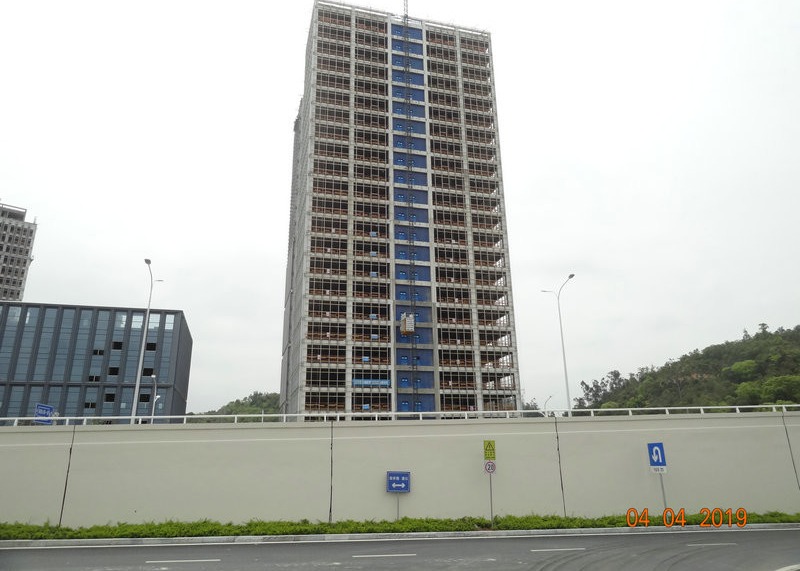

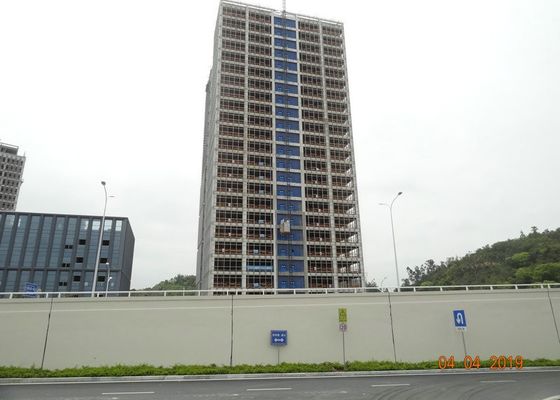

Double Cage 250M Rack Pinion Construction Hoist Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction Hoist Rack and Pinion Elevator SC200BG MP-B11 SC200/200BG MP-B12 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Hoist Elevator | Application | Construction Site, Building Site |
|---|---|---|---|
| Design | Truly Modular | Material | Steel |
| Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line | Cage | Single / Double Cage |
| Highlight | rack pinion lift hoist,250m Hoist Elevator |
||
Product Description
Single / Double Cage 250/400 M* Construction Hoist Elevator
Construction Hoist Elevator Introduction
We have normal building hoist, frequency conversion building hoist, small size hoist, curve building hoist, twin mast building hoist, and so on.
1. Speed: from 0m/min to 46m/min
2. Cage: one cage or twin cages
3. Rated Load:1000kg to 3200kg
4. Installation Height: From 30m to 450m
5. Size of cage: according to clients' requriement
Construction Hoist Elevator Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Main structure frame are made of 16Mn and Q345 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
Construction Hoist Elevator Technical Data
| Item & Article No. | SC200BG, MP-B11; SC200/200BZ, MP-B12 Construction Hoist Elevator |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Drive Unit | VFD (Variable Frequency Drive) |
| Engine power per cage | 3x15 KW |
| Gearbox | Helical Reducer |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
