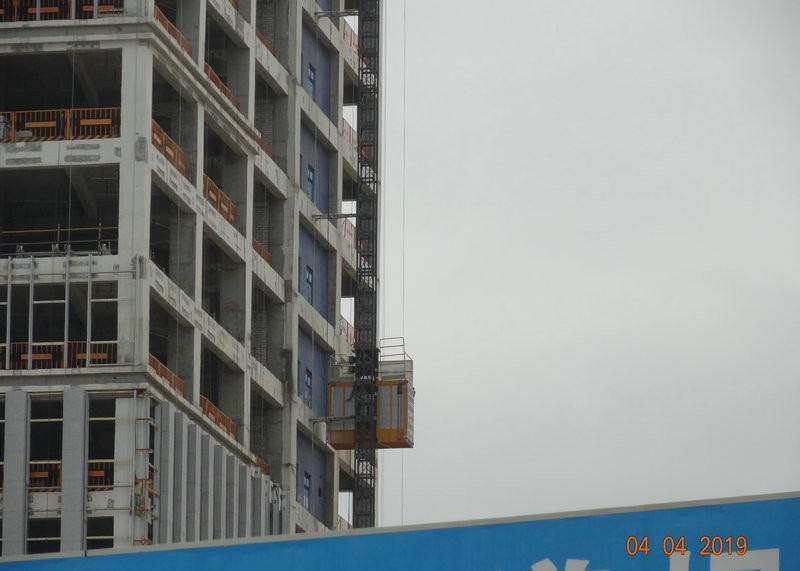

Computer Automatic Control 2000Kg Construction Hoist Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BZ) |
| Minimum Order Quantity | 1 set |
| Price | negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Construction Hoist Elevator | Application | Construction Site, Building Site |
|---|---|---|---|
| Purpose | Vertical Transportation Of Man And Materials In Construction Site Or Building | Material | Cool Roll Steel Plate |
| Payload Capacity | 2000Kg | Name | Construction Hoist Elevator |
| Highlight | 2000kg Construction Elevator,30kw lift for construction site |
||
Product Description
Computer Automatic Control Payload Capacity 2000Kg Construction Hoist Elevator
High security
1. Overload protection
2. Losting-phase protection
3. Safety door protection
4. Interlayer door protection
5. Motor reversal protection
6. Mechanical crash roof protecton
7. Sensor fault protection
8. Motor cutting-out or overload protection.
9. Alarm bell output protection
10. Data protection
Construction Hoist Elevator Standard Configuration
There is a small crane for conenient assembly of the construction lift.
Available in single or twin hoist cage configuration.
Frequency control makes the construction hoists starting and stopping very smoothly, with low starting current and much less wear and tear.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.
Lighting inside construction elevator car is LED ceiling lamp
Construction Hoist Elevator Optional Configuration
* Rack and pinion elevator cage flap door as loading/unloading ramp.
* Elevator car 'C' door for convenient loading/unloading.
* Sliding Contact Line (Integrated Conductive Rail or Busbar) specially for rack and pinion lifts.
| Technical Data | KP-B07, B08 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | FC control |
| Engine Power | 2x15 kw |
| Gearbox | Helical Reducer |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |
