Low Noise 3200 Kg Construction Material Lifting Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction hoist rack and pinion elevator SC320(BZ) KP-B17 SC320/320(BZ) KP-B18 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Material Lifting Hoist | Design | According To European Standard |
|---|---|---|---|
| Material | Cool Roll Steel Plate | Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009. |
| Motor Control | Frequency Control Unit (FC), With Closed-loop | Load | 3,200 Kg |
| Highlight | 3200 Kg Construction Material Hoist,3200 Kg Material Lifting Hoist |
||
Product Description

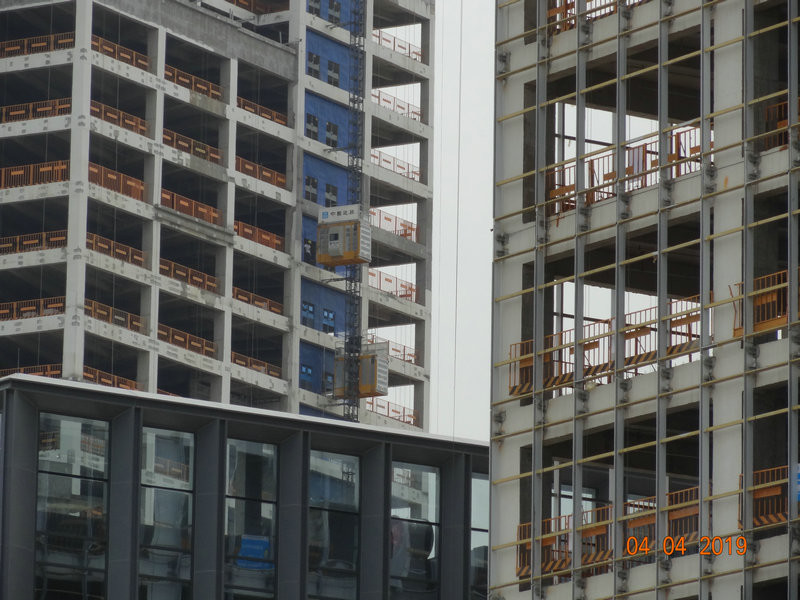

Low Noise 3,200 Kg Construction Material Lifting Hoist
Construction Material Lifting Hoist Introduction
Our building hoist payload capacity is as much as 3200kg, lifting speed can reach up to 46m/min, and the erection height reaches up to 450m. Beside the normal type, our company has also designed and manufacturered specialized hoists for construction of special building, such as curve, slope, twin mast, large tonnage and small size industrial building hoist and so on .We put the quality of products the first place all the time, we import reliable electric components from Europe, the steel structure is semi-automatically welding shaped. The mast section can be steel painting or galvanized. At the mean time, the cage size can be designed according to the customers'need.
Configuration
There is a electrical small crane available to facilitate the assembly of columns and doors on the floors.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Optional equipment
An intelligent elevator control system, Multi-function Control System, with functions of fault detect, display and alarm, and automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is availble.
Construction Material Lifting Hoist Technical data
| Item & Article No. | SC320(BZ) KP-B17, SC320/320(BZ) KP-B18 Construction Material Lifting Hoist |
| Payload capacity | 3,200 kg per cage |
| Lifting speed | 0–46 m/min. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Drive Mode | VFD |
| Engine power | 3x15 kw per cage |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
