2000Kg Lifting Rack & Pinion Hoist For Building Construction
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BZ) |
| Minimum Order Quantity | 1 set |
| Price | negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Hoist For Building Construction | Application | Construction Site, Building Site |
|---|---|---|---|
| Purpose | Vertical Transportation Of Man And Materials In Construction Site Or Building | Material | Q345B Cool Roll Steel Plate |
| Load | 2000Kg | Feature | Strong Applicability |
| Highlight | 2000kg Hoist For Building,Rack & Pinion lifting Hoist |
||
Product Description
Strong Applicability 2000Kg Hoist For Building Construction
Hoist For Building Construction Introduction

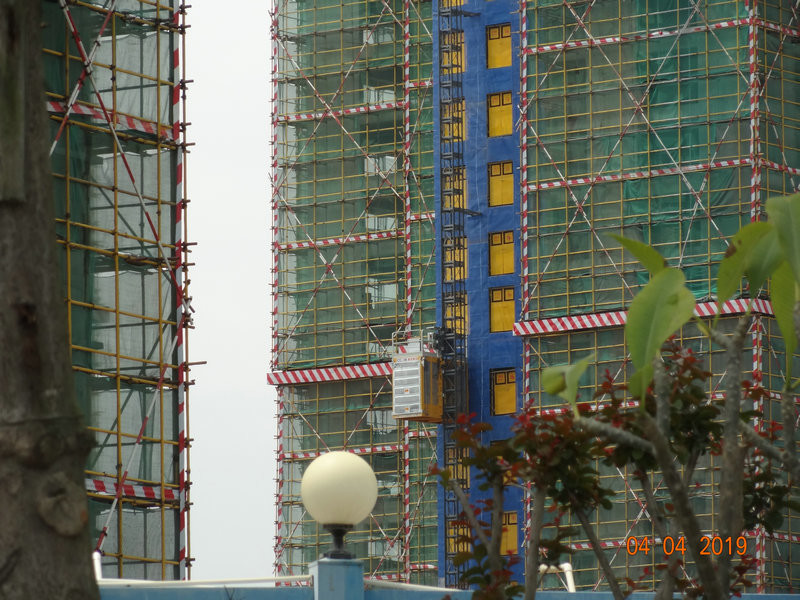

The SC series of construction elevators are widely used at the sites of industrial and civil construction, bridge construction, underground construction, large chimney construction, ship industry and so on. Being suitable for the vertical transport of materials and people, they can also be used as permanent / semi-permanent electric elevators and in various sites like warehouses and high towers.
This series of construction elevators, which are known for their stable performance, reliable safety, easy transportation and strong adaptability, can enhance work efficiency and reduce workers labor intensity.
Hoist For Building Construction Standard Configuration
There is a small crane for conenient assembly of the construction lift.
Available in single or twin hoist cage configuration.
Frequency control makes the construction hoists starting and stopping very smoothly, with low starting current and much less wear and tear.
Manual or Automatic Controls of the hoist is optional.
Hoist For Building Construction Optional Configuration
* Rack and pinion elevator cage flap door as loading/unloading ramp.
* Elevator car 'C' door for convenient loading/unloading.
* Sliding Contact Line (Integrated Conductive Rail or Busbar) specially for rack and pinion lifts.
Hoist For Building Construction Parameters
| Technical Data | KP-B07, B08 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | FC control |
| Engine Power | 2x15 kw |
| Gearbox | Helical Reducer |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |
