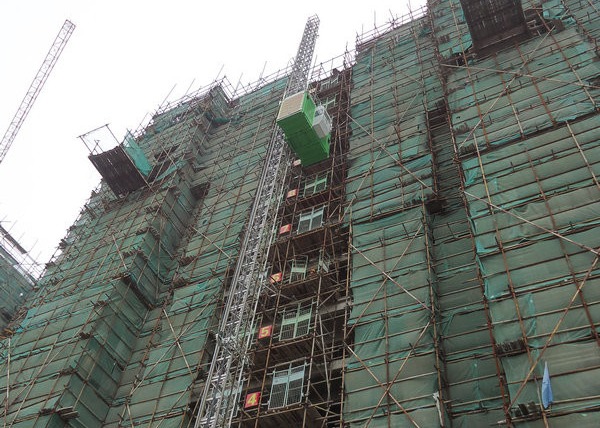

Safe Flexible VFC Motor Control Construction Passenger Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction hoist elevator SC200BG KP-B11 SC200-200BG KP-B12 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Delivery Time | 25-30 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Passenger Hoist | Feature | Safe Flexible |
|---|---|---|---|
| Material | Q345B Cool Roll Steel Plate | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Motor Control | VFC (Variable Frequency Control) | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | 2000kg Passenger Hoist,450m Construction Hoist |
||
Product Description
Safe Flexible VFC Motor Control Construction Passenger Hoist
Construction Passenger Hoist Description
We have introduced the design concept of world's top construction elevator. Our construction hoist lift features world-class properties in various aspects, like structure design, working mechanism, control system, as well as safety and reliability.
Construction Passenger Hoist Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
* Frequency control unit (FC), with closed-loop, which gives the passenger and material hoists very smooth starting and stopping with low starting current and less wear and tear.
Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Construction Passenger Hoist Technical Data
| Item & Article No. | SC200BG, KP-B11; SC200/200BG, KP-B12 Construction Passenger Hoist |
| Payload Capacity | 2,000KG per Cage |
| Lifting Speed | 0–60 meter/minute. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor Power | 3x15 KW per Cage |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55KW per Cage |
| Gearbox | PIELI Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
