Vertical Transportation 36M / Min Construction Hoist Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction hoist elevator SC200BD MP-B05 SC200/200BD MP-B06 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Hoist Elevator | Applicaation | Vertical Transportation |
|---|---|---|---|
| Design | European Regulation | Speed | 0–36 M/Min |
| Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009 | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | 36M / Min Construction Elevator,rack pinion Construction Elevator |
||
Product Description
Vertical Transportation 0–36 M/Min Construction Hoist Elevator
Construction Hoist Elevator Description

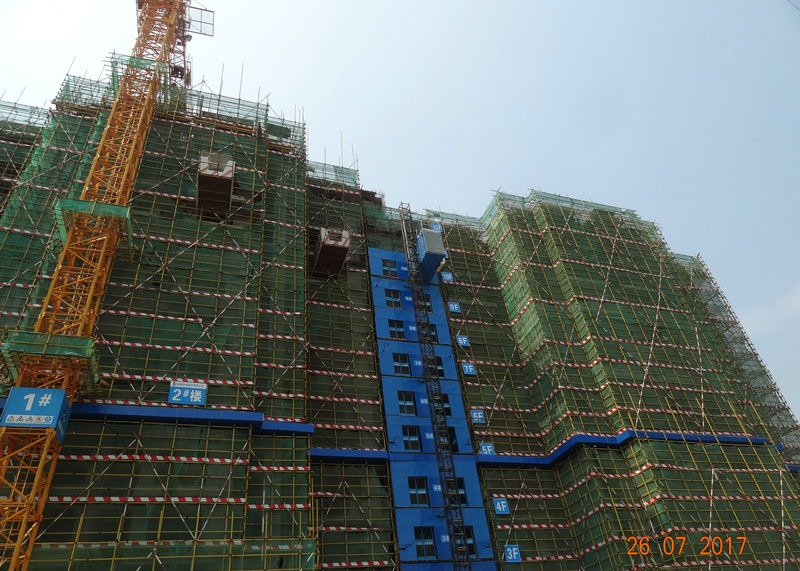

Construction hoist is composed of car, driving mechanism, standard section, attached wall, chassis, fence, electrical system and other parts. It is a manned cargo construction machinery frequently used in buildings. Because of its unique box structure, it is comfortable and safe to ride. Construction elevator is usually used with tower crane on the construction site. The load capacity is 2000kg, and the running speed is 0–36 m/min.. China's construction lifts are becoming more and more mature and gradually moving towards the international arena.
Construction Hoist Elevator Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Construction Hoist Elevator Standard Configuration
There is a electrical small crane available to facilitate the assembly of the construction elevator.
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.
Construction Hoist Elevator Technical Data
| Item & Article No. | SC200BD, MP-B05; SC200/200BD, MP-B06 Construction Hoist Elevator |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors per Cage; Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x11 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Module | 8 |
