Transport People Or Goods Rack Pinion Construction Site Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction site elevator rack pinion SC300BG KP-B15 SC300-300BG KP-B16 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Site Elevator | Application | Transport People Or Goods |
|---|---|---|---|
| Material | Q355B Steel | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Finishing | Sandblasting And Painted, Galvanised | Speed | 0–60 M/Min |
| Highlight | rack pinion People lift,rack pinion goods lift |
||
Product Description

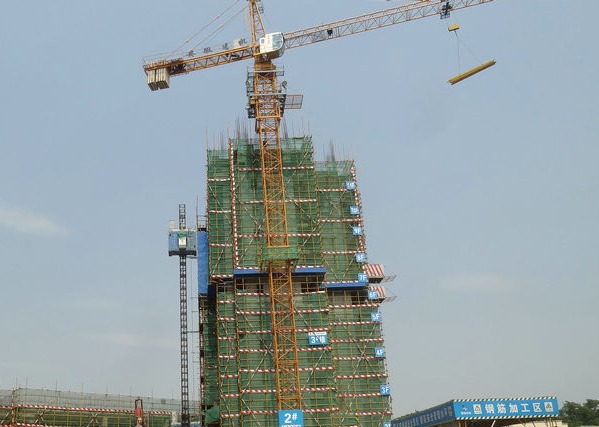

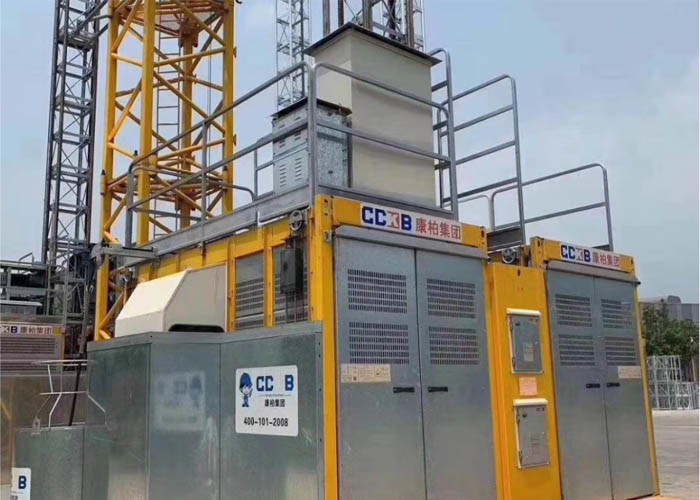

Transport People Or Goods 0–60 M/Min Construction Site Elevator
Construction Site Elevator ADVANTAGES
a. suitable for lifting various construction materials, especial for rebar and scaffolds
b. easy for install and dissemble
c. various safety devices to ensure its working safely.
d. Falling prevent protector can stop and prevent falling caused by wire rope fracture
e. equip with a lifting device, no need mobile crane when install
f. large cage size, can improve the lifting efficiency
g. seamless steel tube can ensure its high strength, good interchangeability
Construction Site Elevator Configuration
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp.
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.
Construction Site Elevator Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Construction Site Elevator Technical Data
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 Construction Site Elevator |
| Payload capacity | 3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor control | FC control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | Square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
