Loading Unloading 46 M / Min Rack And Pinion Lifter
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200BZ, KP-B07,B08 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Rack And Pinion Lifter | Material | Q345B Cool Roll Steel Plate |
|---|---|---|---|
| Processing Procedure | Cut By Laser, Processed By CNC Machines In Tool Fixtures. | Finishing | Painted And Galvanised |
| Color | Customized | Usage | Loading / Unloading |
| Highlight | Loading rack pinion lift,unLoading rack pinion lift |
||
Product Description
Loading / Unloading 0–46 M/Min. Rack And Pinion Lifter
Rack And Pinion Lifter Main characteristics
1. Construction hoist, is also called construction lifter, construction elevator, construction lift, building lifter, building hoist, building lift, building elevator, etc.
2.construction hoist (construction elevator/construction lifter) adopts rack and pinion transmission based on domestic and foreign advanced technology, through many years of innovation and development.
3.. Mast section can be divided into three specifications as follows: 650x650x1508, 800x800x1508 and 960x650x1508.
4.. Driving mode: SCD dual drive, counter weight, no counter weight of SC triple drive, built-in, upper-setting and frequency control etc.

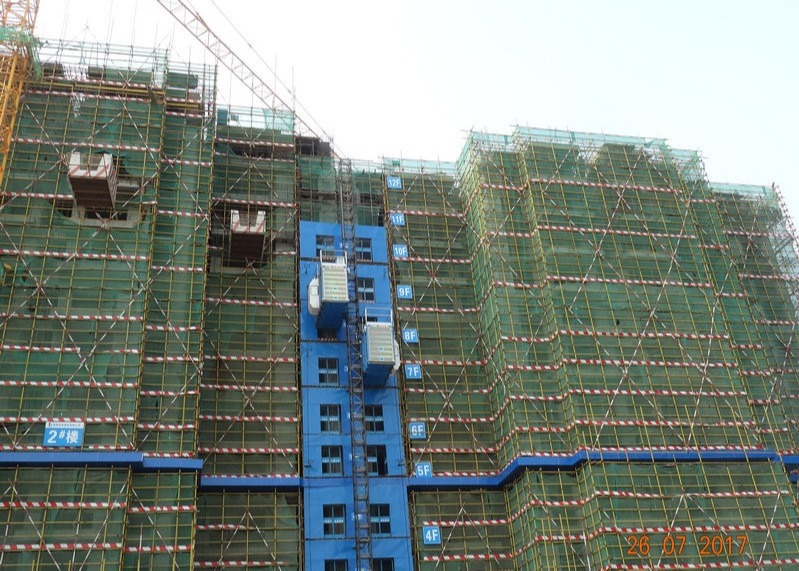

5. construction hoists (construction lifters/construction elevators) are applicable to bridges, chimneys, buildings and many other projects.
Rack And Pinion Lifter Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Rack And Pinion Lifter Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Features and Advantages
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
Rack And Pinion Lifter Parameters
| Technical Data | KP-B07, B08 Rack And Pinion Lifter |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | Frequency Control |
| Engine Power | 2x15 kw |
| Gearbox | Helical Gearbox of KANGBO Make |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |
