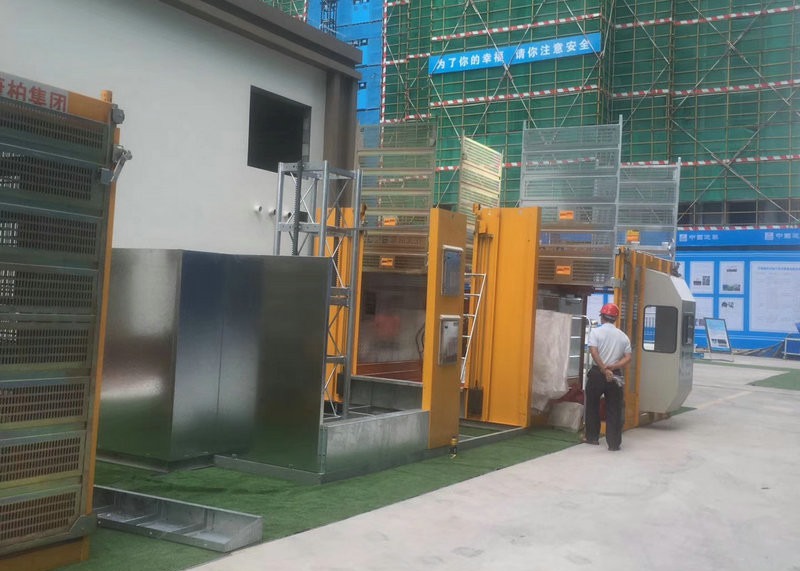

Electric Power Building VFD Motor Control 400m Construction Site Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BD) |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiate |
| Packaging Details | Suitable for export |
| Delivery Time | 30 day |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Electric Power Building | Color | Yellow Or Customized |
|---|---|---|---|
| Inverter Brand | Schneider | Gearbox | Helical Gearbox |
| Finishing | Painted And Galvanised | Type | Construction Site Elevator |
| Highlight | vfd Construction Site Elevator,400m Site Elevator |
||
Product Description
Electric Power Building VFD Motor Control Construction Site Elevator
Construction Site Elevator Introduction
1). Each cage load capacity: 2000kg
2). Lifting speed: 36m/min or 63m/min or 96m/min
3). Mast section: Paint or hot dipping zinc
4). Cage: Single cage or twin cage
5). Recommended cage inner dimension(LxWxH)(m): 2.5x1.3 x2.5; 3.0x1.3x2.5; 3.2x1.5x2.5; 3.6x1.5x2.5; 3.8x1.5x2.5; 4.0x1.5x2.5; 4.2x1.5x2.5, cage dimension is according to requirement of customer and special project.
6). Motor and reducing device: Made in China, can be SEW Germany according to requirements.
7). Counterweight: With counterweight or without counterweight
8). The colors of cage: Yellow, or red, or blue
9). Other each cage load capacity for your to choose: 1000kg, 2000kg, 2700kg, or 3200kg
Construction Site Elevator Features
Truly modular design and standardized production.
Variable Frequency Control motors make the elevator start/stop smoothly.
Construction Site Elevator Production
Elevator parts are made of Q346 cool roll steel plate, processed by Laser and CNC machines in tool fixtures.
Full set of safety facilities, including centrifugal brake, limit switches, emergency limit switches, electromechanical interlock.
Construction Site Elevator Parameters
| Technical Data | KP-B05, KP-B06 Construction Site Elevator |
| Max. Lifting Height | 400 m |
| Payload | 2,000 kg |
| Lifting Speed | 0–36 m/min. |
| Cage Size (internal) | 3.2(L)x1.5(W)*2.35(H) meter |
| Motor Control | VFD control |
| Motor Power | 2x11 kw |
| Gearbox | KANGBO make Helical reducer |
| Safety Device Type | centrifugal brake |
| Type of Mast | square column 650*650 mm with bolted rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
