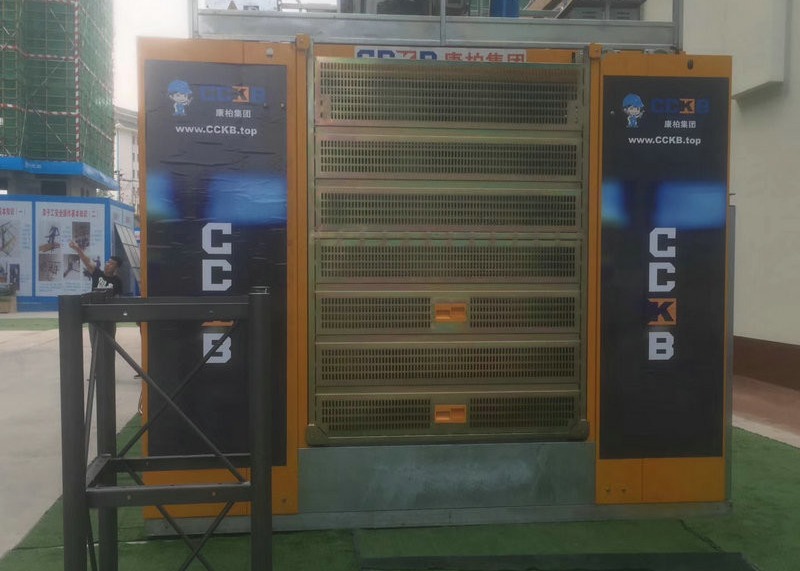

Rack And Pinion 2000kg 60m / Min Construction Site Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200BZ KP-B09, KP-B10 |
| Minimum Order Quantity | 1 unit |
| Price | negotiate |
| Packaging Details | Export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Site Elevator | Usage | Purpose Vertical Transportation Of Man And Materials In Construction Site Or Building Site |
|---|---|---|---|
| Type | Rack And Pinion | Material | Q345B Cool Roll Steel Plate |
| Production | Processed By CNC Machines, Laser, Robots In Assembly Line. | Payload Capacity | 2000Kg |
| Highlight | 2000KG Construction Site Elevator,60M / MIN material lift elevator |
||
Product Description
Rack And Pinion Payload Capacity 2000Kg Construction Site Elevator
Construction Site Elevator Features
1. It is equipped with fully safety devices to guarantee the safe working;
2. Stable running and comfortable adaptability;
3. The transmission system adopts two-drive motors and three-drive motors. Planar double-eveloping worm gear reducer is adopted ensuring the high efficiency, max payload and long service life;
4. Simple electrical control system, easy operation and convenient maintenance withlow failure rate.
Construction Site Elevator Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Construction Site Elevator Standard Configuration
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
There is LED lighting inside construction elevator car.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Construction Site Elevator Optional Configuration
* Rack and pinion elevator cage flap door as loading/unloading ramp.
* Elevator car 'C' door for convenient loading/unloading.
Construction Site Elevator Parameters
| Technical Data | KP-B09, KP-B10 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast section | Square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
