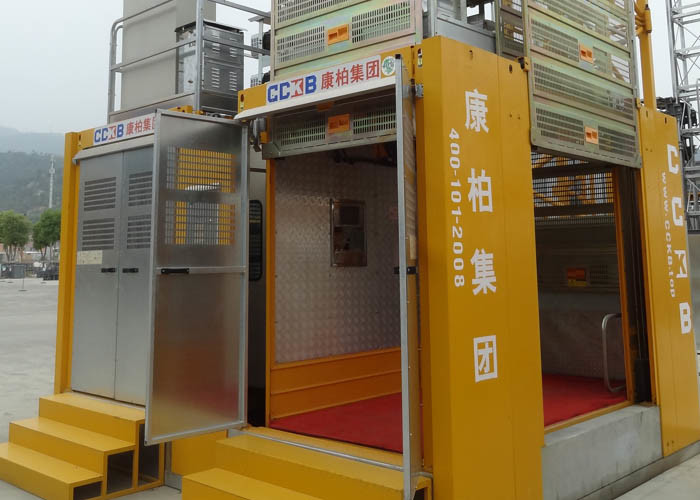

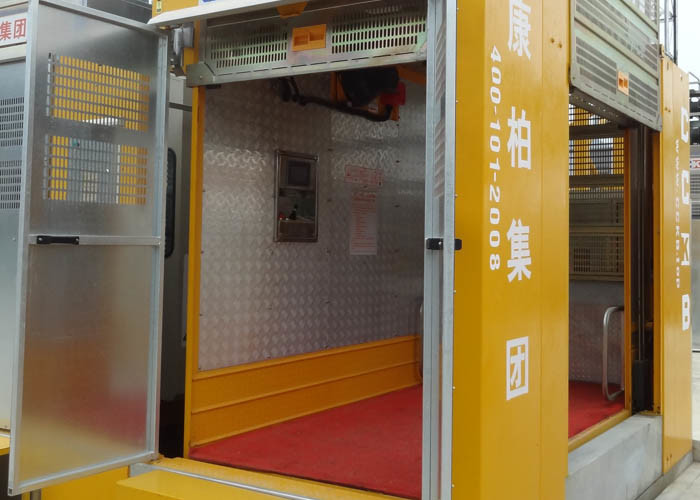

Modularized 3 Door Man And Material Rack Pinion Elevator
| Place of Origin | Xiamaen, China |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC320 |
| Minimum Order Quantity | One unit |
| Price | Negotiate in USD |
| Packaging Details | A 40'HQ container can load one unit of 50 meter high elevator |
| Delivery Time | 25-30 days after receipt of down payment |
| Payment Terms | T/T, L/C at sight |
| Supply Ability | 300 units each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Rack Pinion Construction Elevator | Applying Site | Building Site, Bridges, Chimney, Plants, Etc. |
|---|---|---|---|
| Purpose And Uses | Vertical Transportation Of Man And Materials | Design | According To European Standard |
| Material | Q355B Steel | Production | Tandardized Production, Processed By CNC Machines, Robots |
| Highlight | Man And Material Rack Pinion Elevator,3 Door Rack Pinion Elevator,Modularized Man And Material Lift |
||
Product Description
Heavy Load Rack Pinion 3 Door Man And Material Transportion Elevators
Overview
The modular and standardizing system of SC320 KANGBO MP-B17, MP-B18 offers flexibility, efficiency, energy saving and low cost of ownership, making it the best choice for construction and rental companies.
The design is truly modularized and the drive device and cage are generic and interchangeable.
An electrical small crane to facilitate the assembly mast sections.
Single or twin car is optional.
Variable Frequency Drive (VFD) with low starting current and less wear and tear, very smooth starting and stopping.
Intellegent Control System with fault detect, display and alarm, automatic landing/stopping and floor selection, etc.
Features
* Extremely heavy load, the payload is 3.2 tons.
* Maximum lift speed is 46 meters per minute with full loaded.
* The non-eccentric rollers mean faster installs and less error.
* Integrated and strenghten car roof ensures high strength and never leakage.
* Available in flap door as loading/unloading ramp.
* Additional discharge door at the long side of car facilitates usage of fork truck when load/unload materials.
* Drop test facility with remote control.
* Fences made of galvanised cool rolled steel plate.
| Item | Specification |
| Standard Configuration | |
| Base Specifications | |
| Payload per Cage | Range from 1000 KG to 3200 KG |
| No of Cages | Single Cage / Twin Cage |
| Type of Elevator | Rack and Pinion |
| Max Height | 450 meters |
| Lifting Speed | 0-60m/min with full loaded - Variable Speed with VFD/Inverter |
| Cage / Cab | |
| Cage Internal Size | 3.2(L)*1.5(W)*2.35(H) Meters |
| Cage Frame | Optimized and Strengthened Structure |
| Cage Finish | Yellow |
| Cage Floor | |
| Cage Entry Door | Vertical Sliding, size: 1.42(W)*2.2(H) m |
| Cage Exit Door | Vertical Sliding, size: 1.42(W)*2.2(H) m |
| 'C' Door at the Long Side of Cage - Third Door | Vertical Sliding, size: 1.72(W)*2.2(H) m |
| Cage Escape Hatch | Equipped |
| Driver's Cabin | Excluded |
| Drive Device (Motor & Gear Box) | |
| Motor Type | Electromagnetic Braking Three-phase Induction Motor |
| Motor Make | Chinese famous brands |
| Motor Protection / Degree | IP 55 |
| Application standards to which motor conforms | IEC 60034-1:1996 |
| Class and type of protection | F |
| Type of Gear box | Helical |
| Gearbox make | Kangbo Make Pieli Brand |
| Location of Drive Device Unit | Cage Top |
