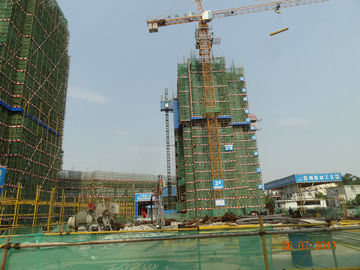

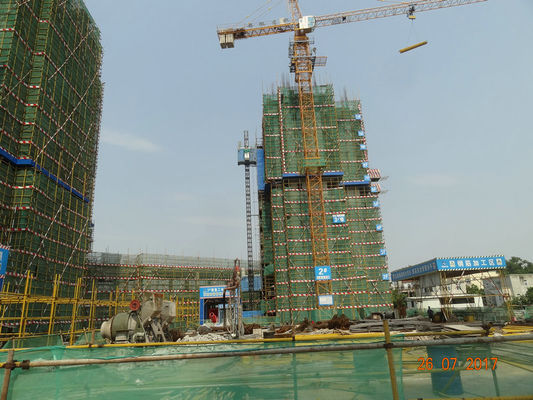

SC200BD Construction Site Lift 0–36 M/Min Speed For Bridges Plants And Malls
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction Site Lift SC200BD MP-B05 SC200-200BD MP-B06 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Construction Site Lift | Application | Construction Site, Bridges, Chimney, Plants, Etc. |
|---|---|---|---|
| Design | As Per EU Regulations And Truly Modular | Material | Q355B Steel |
| Production | As Per European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. | Color | Yellow |
| Highlight | 36M/Min Construction Site Lift,Q355B Steel Construction Site Lift,FC Motor Construction Site Elevator |
||
Product Description

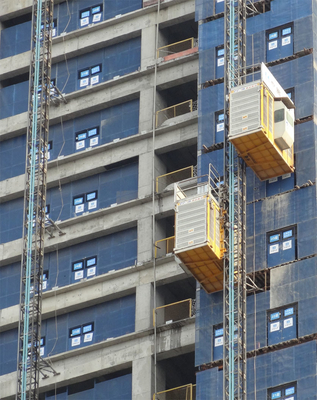

Construction Site Lift 0–36 M/Min Speed SC200BD For Bridges, Plants And Malls
Standard Configuration
A electrical small crane on cage top to facilitate the assembly of the construction lift.
Available in single or twin hoist cage configuration.
This construction rack and pinion lift is Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting/stopping.
Manual or Automatic Controls of the hoist is optional.
LED lights inside construction elevator car.
The construction man and material lift cage roof doors are equipped with electromechanical interlock.
Equipped with hoist drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.
Technical Data
| Item & Article No. |
SC200BD, KP-B05; SC200/200BD, KP-B06 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Exit Door of Cage | Flap Door as discharge ramp is available |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x11 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
