Buildings Bridges Chimney Q355B Steel 36M/Min Construction Site Lift
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction Site Lift SC200BD MP-B05 SC200-200BD MP-B06 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | SC200/200 Construction Building Lifting Equipment | Drive Type | Rack & Pinion |
|---|---|---|---|
| Application | High Buildings, Bridges, Chimney | Design | According To European Standard And Truly Modular |
| Capacity | 2000kg | Material | Q55B Steel |
| Production | As Per European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. | Color | Yellow |
| Highlight | Q355B Construction Site Lift,Construction Site Lift 36M/Min,Chimney Construction Hoist Elevator |
||
Product Description

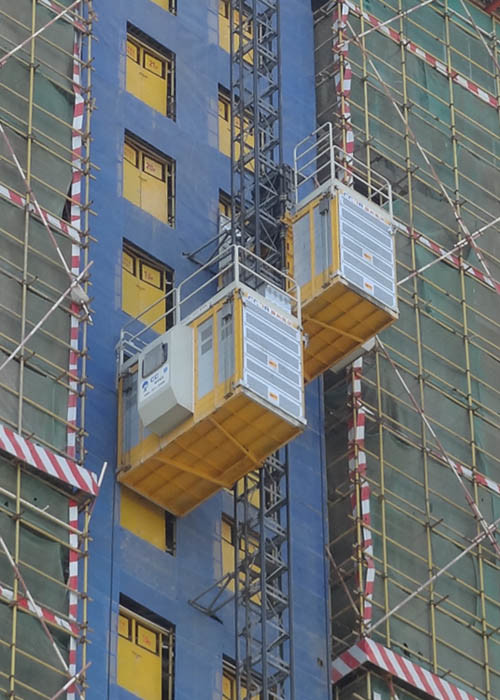

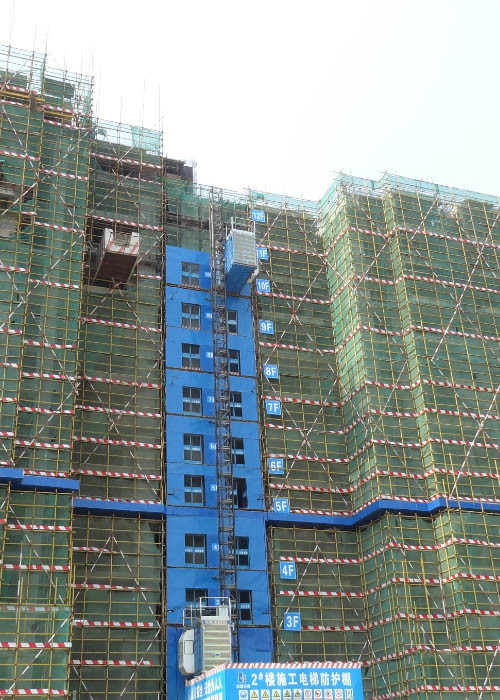

Buildings Bridges Chimney Q355B Steel 36M/Min Construction Site Lift
Construction Site Lift Features
1. Due to the strict material procurement control system, our construction hoist lift is guaranteed with safe and reliable performance.
2. The steel, electrical components, hoist cables, high strength bolts and spare parts are all introduced from well-known international and domestic suppliers.
3. The CNC processing machines and robots ensure the accuracy of the parts and components.
4. Structural parts are welded with argon gas shield so as to keep welding quality and prolong the lifespan of the passenger hoist.
5. The cold-formed steel is adopted to ensure the quality and stiffness of the steel plate. The strengthened steel structure design successfully reduces the risk of structural deformation.
6. The surface of the construction hoist lifts is treated sand blasting and anti-salt-spray paint. The main parts and accessories are hot-dip galvanized. So, the anticorrosion ability of the construction lifting equipment is improved so that its service life is effectively extended.
7. The rigorous and dependable detection means effectively ensure the comprehensive performance of the equipment.
Construction Site Lift Standard Configuration
There is a electrical small crane available to facilitate the assembly of the construction elevator.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.
The construction hoist cage trap door is equipped with Interlock.
Equipped with hoist drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.
Construction Site Lift Technical Data
| Item & Article No. | SC200BD, KP-B05; SC200/200BD, KP-B06 Construction Site Lift |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | Entry Door + Exit Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x11 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
