SC320/320 Passenger And Material Hoist For Construction Site And Plants Max 450M
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction site lift rack and pinion type SC300BG MP-B15 SC300/300BG MP-B16 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | One 20'GP container can load a 50mtrs single cage lift |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Passenger And Material Construction Elevator | Max Height | 450M |
|---|---|---|---|
| Application | Vertical Transportation Of Man And Material | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line |
| Motor Control | VFC (Variable Frequency Control) | Color | Colors Available |
| Highlight | SC320 Passenger And Material Hoist,Passenger And Material Hoist 450M,VFC Construction Site Elevator |
||
Product Description

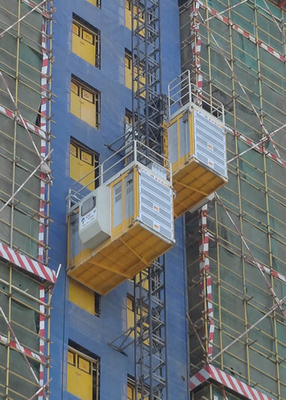

Material And Passenger Lift SC320/320 For Construction Site And Plants Max 450M
Passenger and Material Construction Elevator Introduction
Construction lifter is mainly used to transport workers and materials to multistoried building.
The Construction lifter has advantages, such as steady satety, reliability, flexible and good adaptability, etc.
It improves work efficiency and reduces work intensity.
Our Material Elevator Features and Advantages
* The modular and standardizing system makes our construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost.
* The passenger and material hoist runs stably and smoothly, and starts and stops without surging or jerking.
* The passenger and materail elevator is reliable with very little breakdown and is durable with very long work-life.
* The helical gearboxes which made specially for rack and pinion elevators, are extremely strong, reliable and durable.
* The integrated elevator car roof, which made by a steel plate with edges fully welded, enhance hoist cage strength and ensure no leakage.
* Easy access to electrical panels of elevator for maintenance.
* Full set of certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Technical Data
| Item & Article No. | SC320, KP-B17; SC320/320, KP-B18 |
| Payload Capacity | 3.2 Ton per Cage |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | Flap type as a ramp is available |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x15 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
