BHFS-5-25D/130 Elevator Slide Contact Line Power Supply Device For Construction Lifts

Slide Contact Line power supply for Construction Lifts BHFS-5-25D/130

Outline

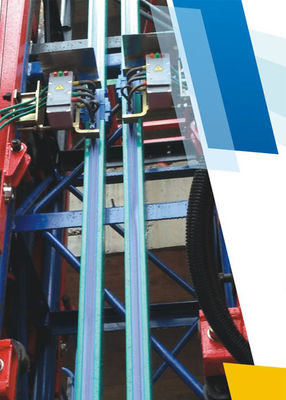

When the Construction Hoists running, they need power continuously. So, the Conductive Rails are installed in parallel along the running track of the Lifts. And the Current Collectors are assembled on the Lifts to get the power from the conductor.

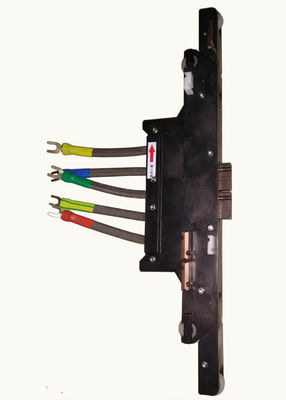

The Current Collector operates synchronously with the moving hoist, and the power supply is obtained from the conductor at any time and/or position to make the hoist move continuously. The Sliding Contact Line is the device that composed of Current Collector, Conductive Conduits which hold Conductive Rails, and relative components.

Structure and main components /parts

As a power supply device for moving Construction Lifts, the Sliding Contact Line is composed of two main parts. That is, Conductive Conduits and the auxiliary assembly, Current Collector and the auxiliary assembly.

Features

*Safety:

the Conduit Shell of Sliding Contact Line is made of engineering plastics with high insulation performance. It is wind-proof, rain-proof and snow-proof. The use of the device is not affected by the wind and rain and other bad weather. Its good insulation performance ensures no harm to the maintenance personnel when they touch the Contact Conduits.

*Reliability:

The Conductive Rails are made of special aluminum alloy profile, with excellent conductivity, rapid heat dissipation, low impedance and line loss. The Carbon Brushes are made of metal graphite material with high conductivity and high wear resistance. The moving of Current Collector is flexible and with good directional performance. The contact arc and the series arc phenomenon are effectively controlled.
*Economy: Sliding Contact Line System is simple in structure and its Conductive Rails are made of special aluminum alloy profile with high density, low resistivity, low loss, can greatly reduce the loss of electric energy. Its length can be added according to the height of hoist mast, which solves the problems of short service life and easy theft of the common cables. At the same time, the Conductive Conduits can be segmented replaced, no need to change the whole cable in the case of local damage.

*Convenience:

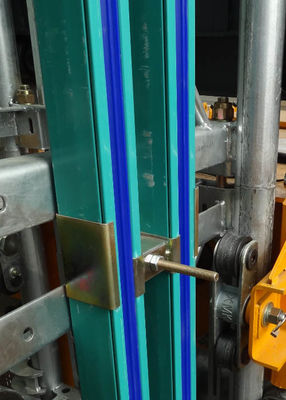

Sliding Contact Line integrates multistage Bus Bar in a Conduit, easy assembly. Its fixed brackets, connecting clamps and suspension devices, etc. are provided with common components, very easy to assemble/dismantle, commissioning and repair.
