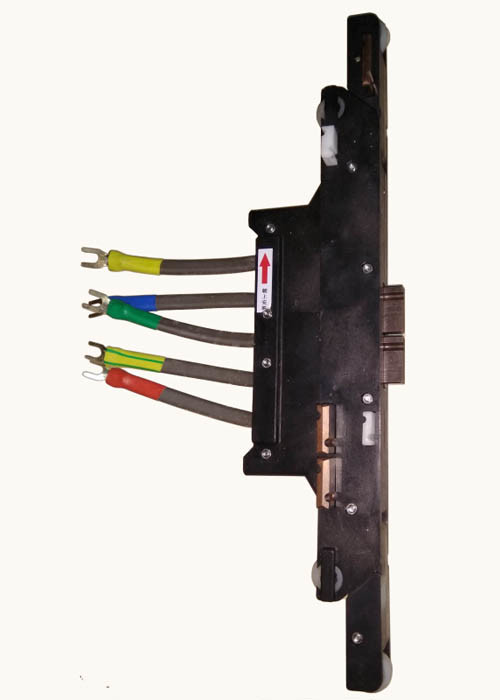

Construction Elevator Slide Contact Line Current Collector With Plastic Material
| Place of Origin | CHINA |
|---|---|
| Brand Name | DABIAO |
| Certification | CE, CCC |
| Model Number | Construction Elevator slide contact line current collector |
| Minimum Order Quantity | 1 pc |
| Price | Negotiate |
| Packaging Details | carton |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | 15,000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Elevator Slide Contact Line | Application | Get The Power From The Conductor. |
|---|---|---|---|
| Material | Plastic, Metal Graphite | Production | As Per CE Regulation |
| Highlight | current collector,electrical junction box |
||
Product Description
Construction Elevator slide contact line current collector
Outline
The Current Collectors are assembled on the Lifts to get the power from the conductor. The Current Collector operates synchronously with the moving hoist, and the power supply is obtained from the conductor at any time and/or position to make the hoist move continuously.
It is composed of Conductive Carbon Brushes, Balance Brushes, wires and shell.
Technical Data
| Current Collector | Traction:F<80N；Speed:V<100m/min |
| Electric Brush coefficient |
Resistance coefficient: 0.1-0.35； Friction coefficient: 0.2; Wear volume <0.7mm per 2000km running; Working pressure: 1.8-2.3N/cm2 |
