Current Collector JDHCX-35A-07 For 35mm² Slide Contact Line Busbar
| Place of Origin | CHINA |
|---|---|
| Brand Name | DABIAO |
| Certification | CE, CCC |
| Model Number | Construction Elevator slide contact line current collector |
| Minimum Order Quantity | 1 pc |
| Price | Negotiate |
| Packaging Details | carton |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | 15,000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 35mm² Slide Contact Line Busbar | Application | Get The Power From The Conductive Conduit |
|---|---|---|---|
| Material | Plastic, Metal Graphite | Production | As Per CE Standard |
| Highlight | Contact Line Current Collector,Busbar Current Collector,35mm2 Slide Contact Line Busbar |
||
Product Description

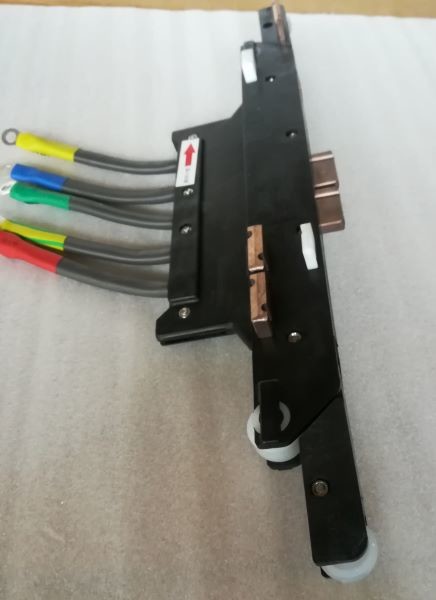

Current Collector JDHCX-35A-07 For 35mm² Slide Contact Line Busbar
Outline
The Current Collectors are assembled on the Lifts to get the power from the conductive conduit.
The Current Collector operates synchronously with the moving elevator, so the power is obtained from the conductor at any time and/or position and transmit to the motors of lift.
It is composed of Live Line Brushes, Balance Brushes, wires and shell.
Technical Data
| ITEM | PARAMETER |
| Current Collector | Traction Force: F < 80N; |
| Traveling Speed: V ≤ 100 m/min | |
| Electric Brush Parameter | Abrasion after operating 2000km: < 0.8 mm; |
| Effective Abrasion of Brush: 5～7 mm; | |
| Effective Working Pressure: 3.72～5.36 N/cm² |
