Constructin Elevator Slide Contact Line Electrical Junction Box And Guide Device Assembly
| Place of Origin | CHINA |
|---|---|
| Brand Name | DABIAO |
| Certification | CE, CCC |
| Model Number | Constructin elevator slide contact line junction box and guide device assembly |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | In carton |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | 15,000 sets |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Elevator Slide Contact Line | Application | Indicating Power Current, Pushing The Current Collector Moving |
|---|---|---|---|
| Material | Die Casting Alumium, Cooper, Plastic | Production | As Per CE Regulation |
| Highlight | current collector,power supply device |
||
Product Description

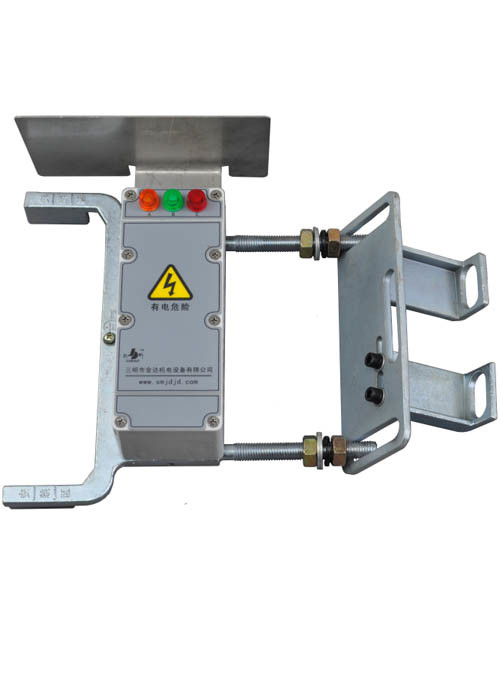

Constructin elevator slide contact line junction box and guide device assembly
Outline
Indicating power current, pushing the Current Collector moving and moderately absorbing the drive error and impact.
4th Generation 25mm2 Insert Type Sliding Contact Line BHFS-5-25D/130 Technical Data
| SR. NO. | ITEM | PARAMETER |
| 1 | RATED CURRENT | 130A |
| 2 | RATED VOLTAGE | 380V / 690V |
| 3 | DIMENSION | 3016x68x60mm |
| 4 | WEIGHT | 9kg |
| 5 | INSULATION RESISTANCE | ≥0.5MΩ |
| 6 | DIELECTRIC WITHSTANDING VOLTAGE | AC 3750V, NO BREAKDOWN AND FLICKERING WITHIN 1 MIN |
| 7 | PROTECTION GRADE OF SHELL | IP10 |
| 8 | Electrothermal Stability | 20times/rated 1s |
| 9 | Rated Short-time Withstand Current & Rated Peak Withstand Current | 4.5KA / 6.75KA |
| 10 | Ambient Features |
1, Heat Resistance Test: Normal Type +55°C 2, Low Temperature Test -30°C |
| 11 | Flame Resistance | V0 (Self Extinguishing) |
| 12 | Parameter of Power Transmission Line |
Compliant with National Standard GB3049 <cable conductor> Resistance ≤0.028Ωmm2/(+20°C) |
| 13 | Current Collector |
Traction Force:F<80N； Traveling Speed:V<100m/min |
| 14 | ELECTRIC BRUSH PARAMETER |
Resistance Coefficient:0.1-0.35； Friction Coefficient:0.2 Abrasion after operating 2000km <0.7mm Effective Working Pressure:1.8-2.3N/cm2 |
