Construction Hoist Elevator Slide Contact Line BHFS-5-25D / 130 Conductive Conduit
| Place of Origin | CHINA |
|---|---|
| Brand Name | DABIAO |
| Certification | CE |
| Model Number | BHFS-5-25D/130 Conductive Conduit |
| Minimum Order Quantity | 100 Meters |
| Price | negotiate |
| Packaging Details | carton |
| Delivery Time | 5-8 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200000 m |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Elevator Slide Contact Line | Application | Power Supply To Construction Hoists |
|---|---|---|---|
| Material | Aluminium, PVC, ABS+PC | Composing | Conductive Rails, Conductive Contact, Conduit Joints, Conduit Shell |
| Color | Green | ||
| Highlight | current collector,electrical junction box |
||
Product Description

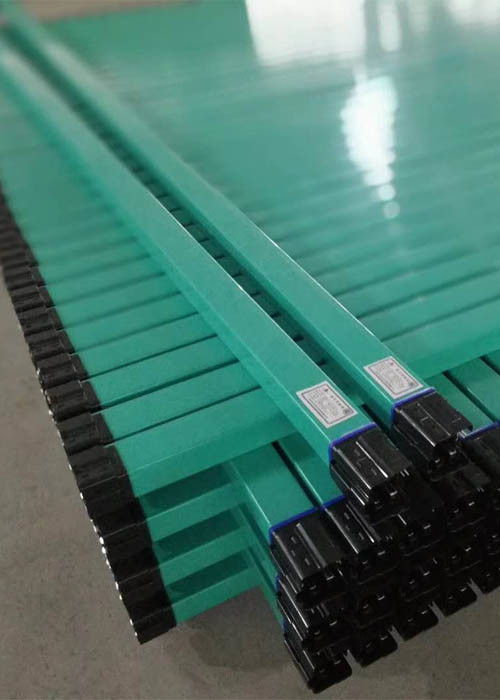

Slide Contact Line for Construction Hoist BHFS-5-25D/130 Conductive Conduit
Features
Safety: the Conduit Shell of Sliding Contact Line is made of engineering plastics with high insulation performance. It is wind-proof, rain-proof and snow-proof. The use of the device is not affected by the wind and rain and other bad weather. Its good insulation performance ensures no harm to the maintenance personnel when they touch the Contact Conduits.
Reliability: The Conductive Rails are made of special aluminum alloy profile, with excellent conductivity, rapid heat dissipation, low impedance and line loss.
| Item | Data |
| Insulation resistance | ≥0.5MΩ |
| Dielectric strength | No breakdown or flicker at AC 3750V in 1 min. |
| Protection grade of the Shell | IP10 |
| Thermal stability | 20 times | rated 1s |
| Rated short time withstand current & rated peak withstand current | 4.5KA/6.75KA |
| Environmental indicators |
1, High temperature resistance test: ordinary type +55°C 2, Low temperature resistance test:-30°C |
| Flame retardancy | Self-extinguishing |
| Conductive Rail data |
Comply with GB3049 standard (cable conductor) Resistivity ≤0.028Ωmm2/(+20°C) |
