Slewing Power Supply Slide Contact Line 35 Mm2 Busbar For Tower Crane
| Place of Origin | CHINA |
|---|---|
| Brand Name | DABIAO COMWINNING |
| Certification | CE |
| Model Number | 35 Mm² Busbar |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Carton |
| Delivery Time | One week |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | BHFS-5W-35A/165 | Application | Power Supply For Tower Crane |
|---|---|---|---|
| Material | Aluminium, PVC, Steel | Package | Carton |
| Highlight | Slewing Power Supply Slide Contact Line,35Mm2 Busbar Slide Contact Line,Tower Crane Power Supply Busbar |
||
Product Description

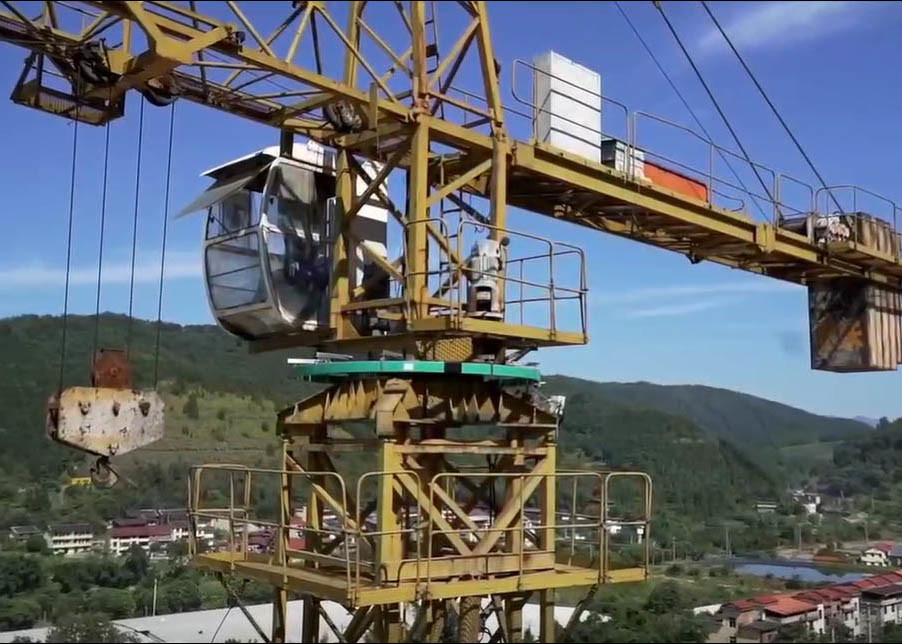

Slewing Power Supply Slide Contact Line For Tower Crane, 35 Mm² Busbar

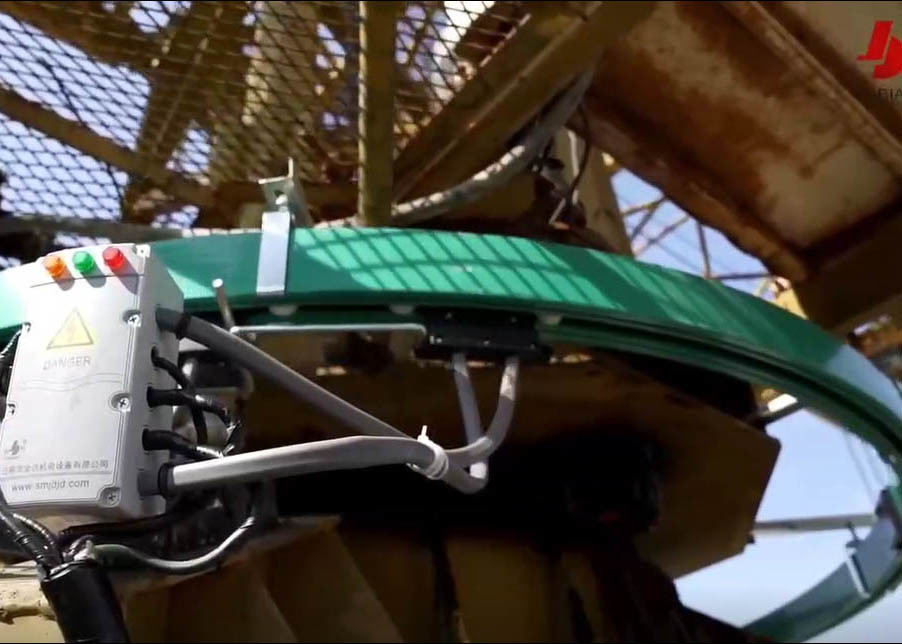

The busbar for tower crane slewing power supply is a new type of power supply device, which is connected with the collector by the cable and provides the tower crane with uninterrupted power supply through the closed-loop slewing busbar, so as to avoid the phenomenon that the cable is often twisted and broken when the tower crane is operating.
It has the function of taking power from the original tower crane slip ring.
Technical Data
| SR. NO. | ITEM | PARAMETER |
| 1 | Rated Current | 165A |
| 2 | Rated Voltage | 380V |
| 3 | Power Supply Mode | Three-phase Five-wire |
| 4 | Dimension | 2778x100x66 mm |
| 5 | Bending Radius | 1300 mm |
| 6 | Weight | 9kg |
| 7 | Insulation Resistance | ≥ 0.5MΩ |
| 8 | Dielectric Strength | AC 3750V, no breakdown or flickering in 1 minute |
| 9 | Protection Grade of Shell | IP23 |
| 10 | Electrothermal Stability | 20 times/rated 1 s |
| 11 | Rated Short-time Withstand Current & Rated Peak Withstand Current | 4.5KA / 6.75KA |
| 12 | Ambient Features | 1, Heat Resistance Test: Normal Type +55 ℃ |
| 2, Low Temperature Resistance Test: -30 ℃ | ||
| 3, Heat and Humidity Resistance Test: Relative Humidity 95%, +25 ℃ | ||
| 4, Atmospheric Pressure: 86～106 KPa | ||
| 13 | Flame Resistance | V0 (Self Extinguishing) |
| 14 | Parameter of Transmission Line | Compliant with National Standard GB/T3048 <cable conductor>; |
| Resistance ≤ 0.028 Ωmm²/m ( +20 ℃) | ||
| 15 | Current Collector | Traction Force: F < 80N; |
| Traveling Speed: V ≤ 100 m/min | ||
| 16 | Electric Brush Parameter | Abrasion after operating 2000km: < 0.8 mm; |
| Effective Abrasion of Brush: 5～7 mm; | ||
| Effective Working Pressure: 1.8～4.08 N/cm² |
