Construction Elevator 25 S.Q.Mm Slide Contact Line Current Collector
| Place of Origin | CHINA |
|---|---|
| Brand Name | DABIAO |
| Certification | CE, CCC |
| Model Number | CRSHCX-25-07 Construction Elevator slide contact line current collector |
| Minimum Order Quantity | 1 pc |
| Price | Negotiate |
| Packaging Details | carton |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | 15,000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 25 S.q.mm Slide Contact Line Current Collector For Elevator | Application | Get The Power From The Conductor. |
|---|---|---|---|
| Material | Plastic, Metal Graphite | Quality Standard | Meet CE Regulations |
| Highlight | Construction Elevator Slide Contact Line,Slide Contact Line Current Collector,25 s.q.mm Elevator Slide Contact Line |
||
Product Description
Construction Elevator 25 s.q.mm Slide Contact Line Current Collector CRSHCX-25-07
Outline
The Current Collectors run inside the conductive conduits of slide contact line power supply system and are attached to the Lifts to get the power from the conductor. The Current Collector operates synchronously with the moving hoist, so the power supply is obtained from the conductor to make the hoist move continuously.

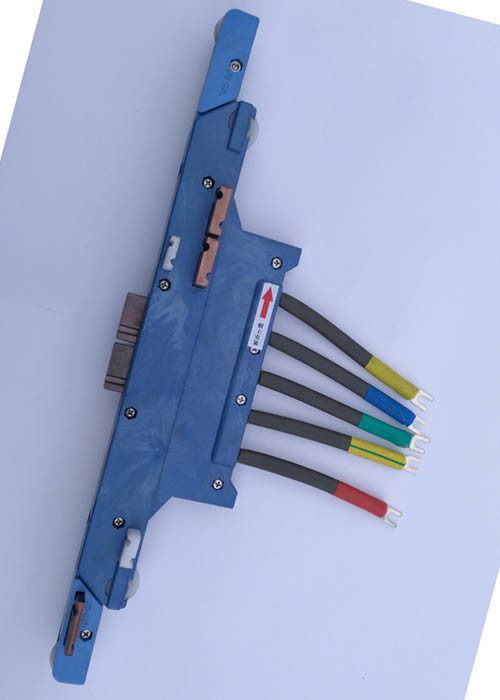

It is composed of Conductive Carbon Brushes, Balance Brushes, wires and shell.
Technical Data
| SR. NO. | ITEM | PARAMETER |
| 1 | Article Number | CRSHCX-25-07 |
| 2 | Rated Current | 80A |
| 3 | Rated Voltage | 380V / 690V |
| 4 | Weight | 1.2kg |
| 5 | Running Speed | ≤ 100 m/min |
| 6 | Rated Current of Cable Connected | 130A |
| 7 | Applicable Slide Contact Line Model | 25 mm² Slide Contact Line System |
